Why Choose the ABB MPD15-11Y Double Pushbutton?
The ABB MPD15-11Y, ABB order code 1SFA611144R1103, is a modular illuminated double pushbutton operator designed for industrial machinery, automation systems and operator control panels. As part of ABB's Pilot Devices product group, it combines clearly identified START and STOP controls with a yellow indicator in a compact operator assembly.

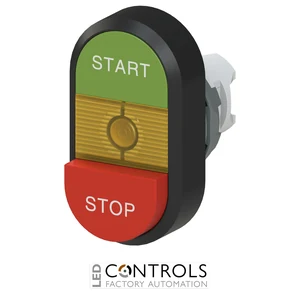

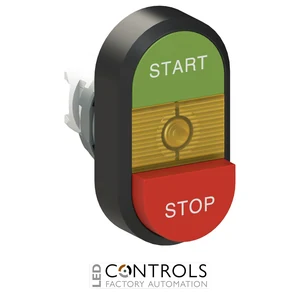

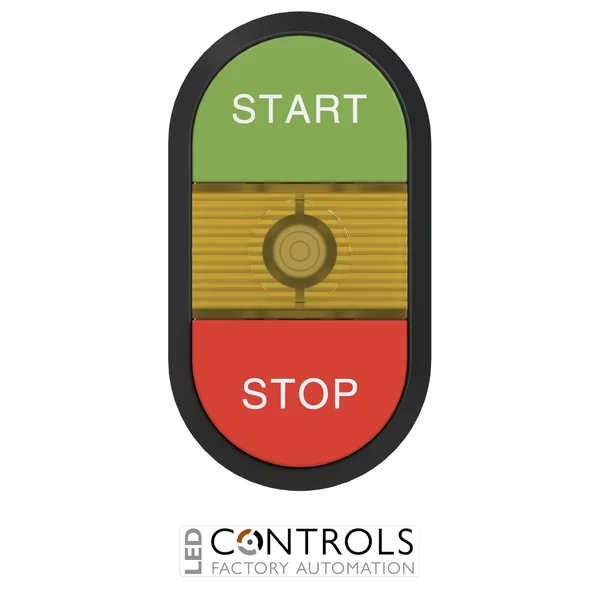

The MPD15-11Y features a green flush upper pushbutton marked "START" and a red extended lower pushbutton marked "STOP", together with a yellow light indicator. Both pushbutton functions are momentary, while the contrasting colours, markings and actuator profiles provide clear visual and tactile differentiation for machine operators.
Designed for standard 22 mm industrial pilot-device mounting, the MPD15-11Y provides IP66 and NEMA 4X front protection when correctly installed. Its modular construction allows compatible ABB holders, contact blocks and LED blocks to be selected separately according to the required electrical control and signalling functions.
Key Advantages
- Compact illuminated double pushbutton operator combining START, STOP and indication functions.
- Green START and red STOP actuators provide clear and intuitive operator identification.
- Flush upper and extended lower actuator configuration provides visual and tactile differentiation.
- Integrated yellow light indicator provides clear visual signalling.
- IP66 and NEMA 4X front protection supports demanding industrial environments.
- Modular ABB design allows compatible holders, contact blocks and LED blocks to be selected for the application.
Key Features
- ABB MPD15-11Y double pushbutton.
- Green upper actuator marked "START".
- Red lower actuator marked "STOP".
- Flush upper / extended lower actuator configuration.
- Yellow light indicator.
- Illuminated operator design.
- Momentary pushbutton operation.
- Part of ABB's modular plastic pilot-device range.
- Designed for 22 mm pilot-device mounting.
- IP66 front protection rating.
- NEMA 4X front protection classification.
- Supplied without contact blocks or LED block for flexible configuration.
Double pushbuttons allow related machine-control functions to be incorporated into a single compact operator, helping reduce the panel space required for industrial controls. The MPD15-11Y combines a green START actuator with a red STOP actuator, providing familiar visual identification for machinery, manufacturing equipment and process-control applications.
The ABB MPD15-11Y uses a flush upper actuator and an extended lower actuator to provide additional tactile differentiation between the START and STOP controls. Its yellow indicator adds a separate visual signalling function, while ABB's modular architecture allows the required holders, contact blocks and LED block to be selected according to the application.
Typical Applications
- Industrial machinery START and STOP controls.
- Operator stations and control consoles.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process control and automation equipment.
- OEM machinery requiring combined START, STOP and visual indication functions.
