Why Choose the ABB MPD15-11C Double Pushbutton?
The ABB MPD15-11C is an illuminated double pushbutton operator designed for industrial machinery, automation systems and electrical control panels. Part of the ABB MPD modular plastic pilot device range, it combines two clearly identified control actuators with a central indicator in one compact operator assembly.

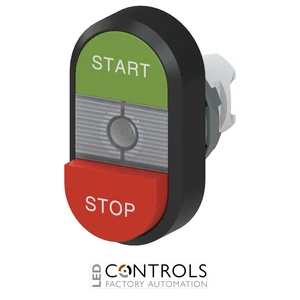

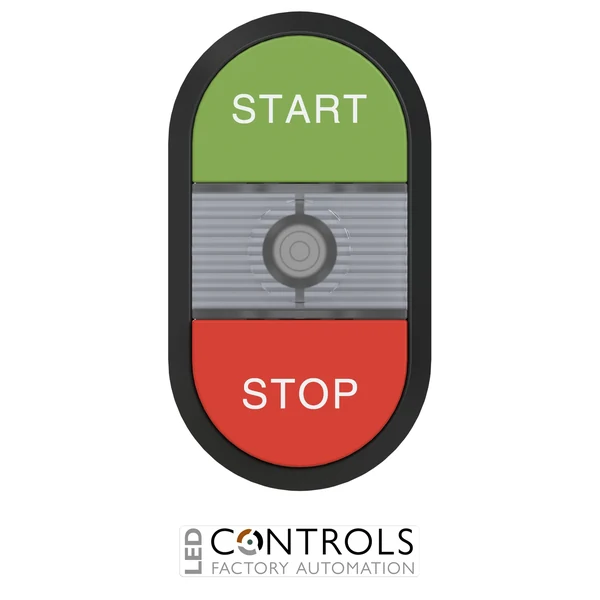

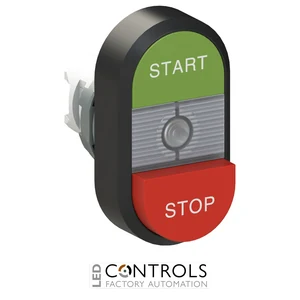

The MPD15-11C features a green upper button marked START and a red lower button marked STOP, providing intuitive identification of complementary machine control functions. A clear indicator between the pushbuttons provides a dedicated illuminated signalling position when used with a compatible ABB illumination block.
Designed for momentary operation, the MPD15-11C uses a flush upper actuator and extended lower actuator configuration. It fits the standard 22 mm pilot-device format and is supplied without contact blocks, allowing compatible ABB contact and illumination blocks to be selected according to the required switching and signalling functions.
Key Advantages
- Compact START/STOP double pushbutton combines two commands in one panel position.
- Green START and red STOP actuators provide clear functional identification.
- Clear indicator supports illuminated machine-status signalling.
- Flush upper and extended lower actuator arrangement provides visual and tactile differentiation.
- Momentary operation suits industrial command and control circuits.
- IP66 front protection supports reliable operation in demanding industrial environments.
Key Features
- ABB MPD15 modular double pushbutton.
- Green upper actuator marked START.
- Red lower actuator marked STOP.
- Clear illuminated indicator.
- Flush / extended actuator configuration.
- Momentary operation.
- Standard 22 mm pilot-device format.
- Approximately 22.5 mm mounting-hole diameter.
- IP66 front protection rating.
- Mechanical durability of up to 2 million operations.
- Contact blocks and illumination unit are selected separately.
- ABB order code 1SFA611144R1108.
Compact START/STOP Control for Industrial Machinery
Double pushbuttons allow two related operator commands to be accommodated within a compact panel footprint. The ABB MPD15-11C combines clearly marked START and STOP controls with a clear illuminated indicator, providing an organised operator interface for machinery, production equipment and industrial automation systems.
The flush START actuator and extended STOP actuator help operators distinguish the controls both visually and by touch. Its modular construction allows compatible ABB contact blocks and an illumination unit to be selected according to the required electrical switching and signalling arrangement.
Typical Applications
- Industrial machinery START/STOP controls.
- Motor and conveyor control stations.
- Manufacturing and production equipment.
- Packaging and processing machinery.
- Electrical control panels and operator stations.
- OEM machinery and industrial automation systems.
