Why Choose the ABB MPD16-11R Double Pushbutton?

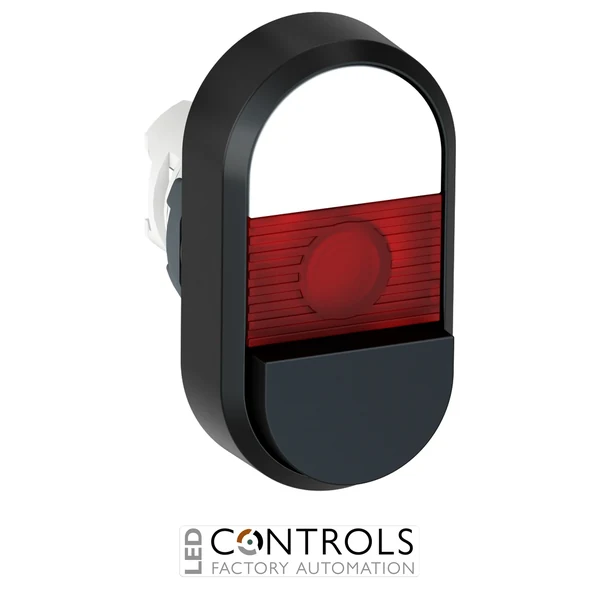

The ABB MPD16-11R is an illuminated double pushbutton operator designed for industrial machinery, automation systems and electrical control panels. Part of the ABB modular plastic pilot device range, it combines two momentary controls with a central red indicator in one compact 22 mm operator assembly.
The MPD16-11R features a white upper actuator and black lower actuator, both supplied without text, providing a neutral configuration suitable for machine-specific control functions. A red indicator between the pushbuttons provides a dedicated illuminated signalling position when combined with a compatible ABB illumination block.
Designed for momentary spring-return operation, the MPD16-11R uses a flush upper actuator and extended lower actuator configuration. Its modular construction allows compatible ABB contact blocks and illumination components to be selected separately according to the required electrical switching and signalling arrangement.
Key Advantages
- Compact double pushbutton operator combines two control functions in one panel position.
- White upper and black lower actuators provide clear visual differentiation.
- Integrated red indicator supports illuminated machine-status signalling.
- Flush upper and extended lower actuator arrangement provides tactile differentiation.
- Momentary spring-return operation for industrial command circuits.
- IP66 front protection supports reliable operation in demanding industrial environments.
Key Features
- ABB MPD16 modular double pushbutton.
- White upper actuator.
- Black lower actuator.
- Red illuminated indicator.
- No text on either actuator.
- Flush / extended actuator configuration.
- Momentary spring-return operation.
- Standard 22 mm pilot-device mounting format.
- Black plastic bezel.
- IP66 front protection rating.
- Mechanical durability of up to 2 million operations.
- Contact blocks are not included.
- ABB order code 1SFA611145R1101.
Double pushbuttons allow two related operator commands to be accommodated within a compact panel footprint. The ABB MPD16-11R combines contrasting white and black actuators with a red illuminated indicator, providing a versatile operator interface for machinery, production equipment and industrial automation systems.
The flush upper and extended lower actuator arrangement helps operators distinguish the two controls by touch as well as colour. Its modular construction allows compatible ABB contact blocks and an illumination block to be selected according to the required switching and signalling functions.
Typical Applications
- Industrial machinery control panels.
- Operator control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- OEM machinery and industrial automation systems.
