Why Choose the ABB MPD16-11C Double Pushbutton?

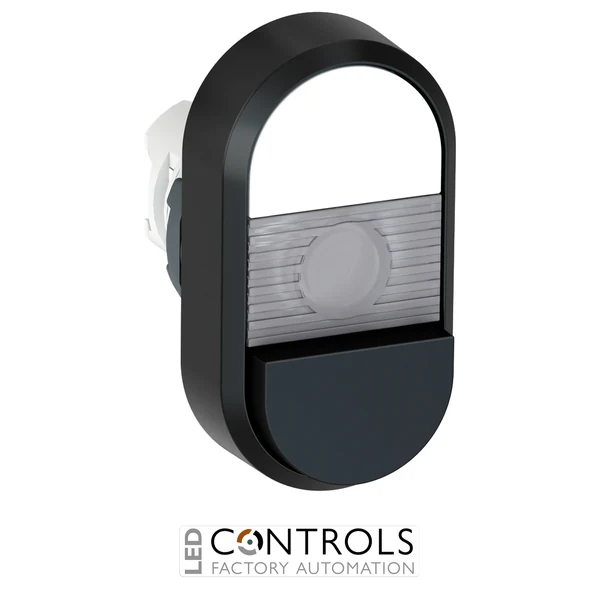

The ABB MPD16-11C is an illuminated momentary double pushbutton operator designed for industrial machinery, control panels and operator stations. As part of the ABB modular plastic pilot device range, it combines two control functions with a clear visual indicator in a compact operator suitable for industrial command and signalling applications.
The MPD16-11C features a white flush upper pushbutton and a black extended lower pushbutton, with both actuators supplied without text or symbols. A clear indicator provides the illumination position, allowing the operator to deliver both manual command functions and visual status indication when assembled with compatible ABB modular components.
Designed for ABB's 22 mm modular pilot-device system, the MPD16-11C provides IP66 front protection and operates across an ambient temperature range of -25 to +70 °C. The operator is supplied without a contact block, allowing the required switching arrangement to be configured separately. ABB order code 1SFA611145R1108 identifies this exact MPD16-11C Double Pushbutton within ABB product group 312001-Pilot Devices (Secrl).
Key Advantages
- Compact double pushbutton operator combines two command functions in one panel position.
- White upper and black lower actuators provide clear visual differentiation between controls.
- Flush upper and extended lower actuator arrangement provides useful tactile differentiation.
- Clear illuminated indicator supports visual machine-status signalling.
- Momentary spring-return operation for industrial command circuits.
- IP66 front protection supports use in demanding industrial environments.
- ABB modular construction allows compatible contact and illumination components to be selected for the application.
Key Features
- ABB MPD16 modular double pushbutton.
- Momentary operating function.
- White flush upper pushbutton.
- Black extended lower pushbutton.
- No text on either pushbutton.
- Clear indicator.
- Illuminated operator design.
- Flush/extended actuator configuration.
- IP66 front protection rating.
- Mechanical durability of 2 million operations.
- Supplied without a contact block.
- ABB order code 1SFA611145R1108.
Compact Dual Control with Clear Visual Indication
Double pushbuttons provide two related command functions within a single operator position, helping machine builders reduce the panel space required for frequently used controls. The ABB MPD16-11C combines a white flush upper actuator with a black extended lower actuator, giving operators both visual and tactile differentiation between the two momentary controls.
The clear indicator adds a visual signalling function to the operator assembly. ABB's modular pilot-device architecture allows compatible holders, contact blocks and illumination components to be selected according to the electrical requirements of the application, providing a flexible and serviceable control solution for industrial machinery and automation systems.
Typical Applications
- Industrial machinery control panels.
- Machine command and control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Operator stations and control desks.
- Process machinery and automation equipment.
- OEM machinery and machine-building applications.
