Why Choose the ABB M2SS3-11R Selector Switch?
The ABB M2SS3-11R is an illuminated 2-position momentary selector switch operator designed for industrial machinery, automation systems and electrical control panels. Part of the ABB Modular 22 mm pilot device range, it combines manual control with red illuminated indication in a compact industrial operator.

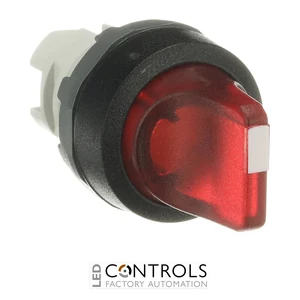

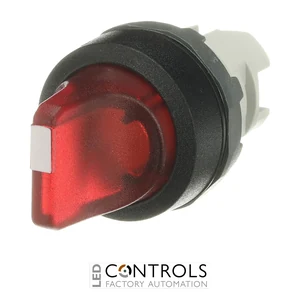

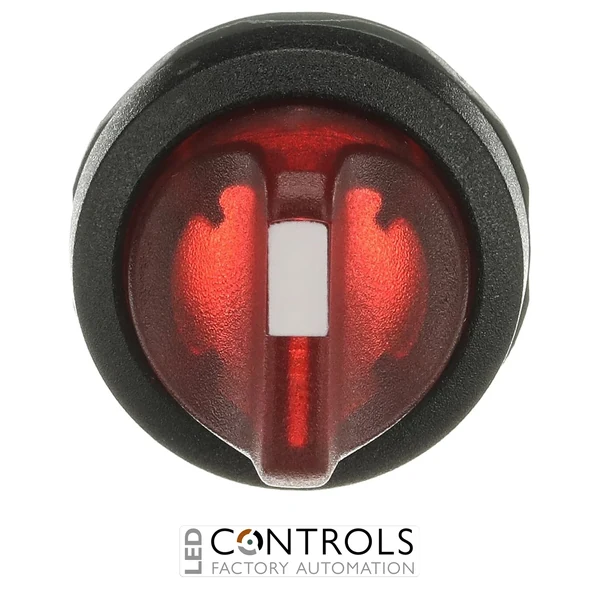

The M2SS3-11R features a red short-handle actuator with a black plastic bezel. It uses a spring-return operating mechanism, with the selector returning from position C to position B when released, making it well suited to temporary command and machine-control functions where a momentary selector action is required.
Designed for a standard 22 mm panel mounting hole, the M2SS3-11R is suitable for illumination and is supplied without a contact block. Compatible ABB contact blocks, holders and illumination components can therefore be selected separately to suit the required electrical switching and signalling arrangement.
Key Advantages
- 2-position momentary selector switch for industrial machinery and automation controls.
- Spring return from C to B provides momentary selector operation.
- Red short-handle actuator provides clear visual identification.
- Suitable for illumination for enhanced operator indication.
- Black plastic bezel provides a durable industrial panel interface.
- Standard 22 mm mounting format simplifies integration into control panels and operator stations.
Key Features
- ABB M2SS3 modular selector switch series.
- 2-position momentary operation.
- Spring return from C to B.
- Short-handle actuator.
- Red actuator.
- Red illumination colour.
- Black plastic bezel.
- Suitable for illuminated operation.
- Designed for a 22 mm mounting hole.
- IP66 front protection.
- NEMA Type 4X front protection.
- Contact block is not included.
- ABB order code 1SFA611202R1101.
Momentary Selection Control for Industrial Machinery
Momentary selector switches are ideal where a machine command should only remain active while the operator deliberately actuates the control. The ABB M2SS3-11R provides two selector positions with spring return from C to B, giving operators a clearly defined temporary command action for machinery and process-control functions.
Its red short-handle actuator, black plastic bezel and modular 22 mm construction make the M2SS3-11R suitable for industrial control panels and operator stations. Compatible ABB contact blocks and illumination components can be selected separately to configure the required electrical switching and visual signalling functions.
Typical Applications
- Industrial machinery control panels.
- Momentary machine commands.
- Jog and temporary operating functions.
- Manufacturing and production equipment.
- Operator stations and control consoles.
- OEM machinery and industrial automation systems.
