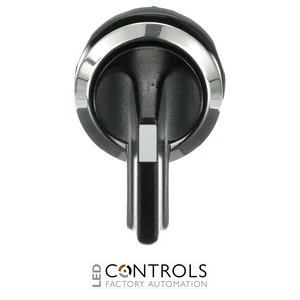

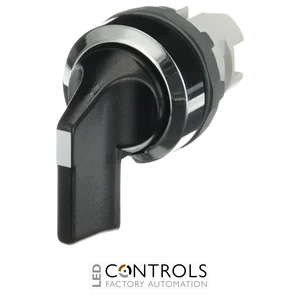

ABB M2SS4-30B is a non-illuminated 2-position maintained selector switch with a black long-handle actuator, chrome-metal bezel and IP66 front protection for industrial control-panel applications.
The ABB M2SS4-30B is a robust 2-position maintained selector switch designed for reliable operator control in industrial machinery, electrical control panels and automation systems. Part of the ABB Modular Plastic pilot device range, it combines a black long-handle actuator with a durable chrome-metal bezel for professional industrial installations.
The M2SS4-30B provides B/C maintained selector operation, allowing the selected position to remain active until the operator deliberately changes it. Its long-handle rotary actuator provides clear, positive manual selection and is particularly well suited to machine operating modes, process functions and other applications requiring a stable two-position command.
Designed for the standard 22 mm modular pilot-device system, the M2SS4-30B integrates easily into industrial control panels. Its non-illuminated construction, IP66 front protection and robust metal bezel make it a dependable operator interface for demanding industrial environments.
Key Advantages
Industrial 2-position maintained selector switch for machinery and automation control.
B/C maintained positions retain the selected operating state until manually changed.
Black long-handle actuator provides clear and positive rotary operation.
Durable chrome-metal bezel for robust industrial panel installations.
Standard 22 mm modular mounting format simplifies control-panel integration.
IP66 front protection provides resistance to dust and water ingress.
Key Features
ABB Modular Plastic pilot device range.
2-position selector switch.
Maintained operating action.
B and C maintained positions.
Long-handle rotary actuator.
Black actuator.
Chrome-metal bezel.
Non-illuminated design.
IP66 front protection rating.
Supplied without contact block for modular configuration.
Reliable Maintained Control for Industrial Machinery
Maintained selector switches are used where an operator needs to choose a machine state or operating function and have that selection remain active without continuously holding the actuator. The ABB M2SS4-30B provides this functionality through two maintained B/C positions and a long-handle actuator that gives operators a clear indication of the selected position.
ABB's modular pilot-device system allows selector-switch operators and compatible contact blocks to be configured according to the requirements of the control circuit. This modular approach makes the M2SS4-30B suitable for new machinery, OEM control panels and maintenance or modification of compatible ABB pilot-device installations.
Typical Applications
Industrial machinery control panels.
Machine operating-mode selection.
Factory automation systems.
Process control equipment.
Production and assembly machinery.
Conveying and material handling systems.
OEM electrical and automation panels.
Technical Specifications
Tick the specs you need, then view products that match.
Illumination
Non-illuminated
Device Type
Selector Switch
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Black
Operation
2 positions – maintained
Series
Modular Plastic Pilot Devices
ABB order code
1SFA611203R3006
Product group
312001 - Pilot Devices (Secrl)
Product type
Selector switch
Number of positions
2
Function
Maintained
Maintained positions
B, C
Actuator type
Long handle
Actuator colour
Black
Illumination
Non-illuminated
Bezel material
Metal
Bezel finish
Chrome
Mounting system
22 mm modular pilot device
Front protection rating
IP66
NEMA enclosure types
Type 1, 12, 13, 3R, 4 and 4X
Mechanical durability
0.5 million operations
Operating temperature
-25–70 °C
Storage temperature
-40–85 °C
Contact block
Not included
Frequently Asked Questions
What is the ABB M2SS4-30B used for?
The M2SS4-30B is a selector switch used for operator control and function selection in industrial machinery, automation equipment and electrical control panels.
How many positions does the ABB M2SS4-30B have?
The ABB M2SS4-30B is a 2-position selector switch with maintained B and C positions.
Is the ABB M2SS4-30B maintained or momentary?
The M2SS4-30B has maintained operation, meaning the selector remains in the chosen position until it is manually moved to the other position.
Is the ABB M2SS4-30B illuminated?
No. The M2SS4-30B is a non-illuminated selector switch with a black long-handle actuator and chrome-metal bezel.
What protection rating does the M2SS4-30B provide?
The front of the ABB M2SS4-30B provides IP66 protection, making it suitable for demanding industrial control-panel applications.
Trusted Industrial Pilot Devices from ABB
ABB modular pilot devices provide flexible and dependable operator interfaces for industrial machinery, automation systems and electrical control panels, with modular components designed for reliable operation and straightforward application configuration.
Illumination
Non-illuminated
Device Type
Selector Switch
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Black
Operation
2 positions – maintained
Series
Modular Plastic Pilot Devices
ABB order code
1SFA611203R3006
Product group
312001 - Pilot Devices (Secrl)
Product type
Selector switch
Number of positions
2
Function
Maintained
Maintained positions
B, C
Actuator type
Long handle
Actuator colour
Black
Illumination
Non-illuminated
Bezel material
Metal
Bezel finish
Chrome
Mounting system
22 mm modular pilot device
Front protection rating
IP66
NEMA enclosure types
Type 1, 12, 13, 3R, 4 and 4X
Mechanical durability
0.5 million operations
Operating temperature
-25–70 °C
Storage temperature
-40–85 °C
Contact block
Not included
