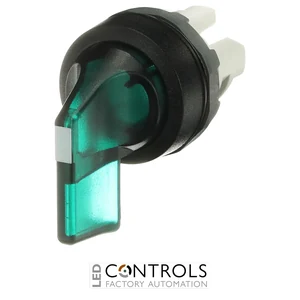

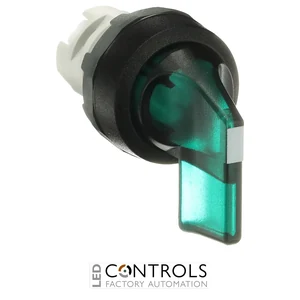

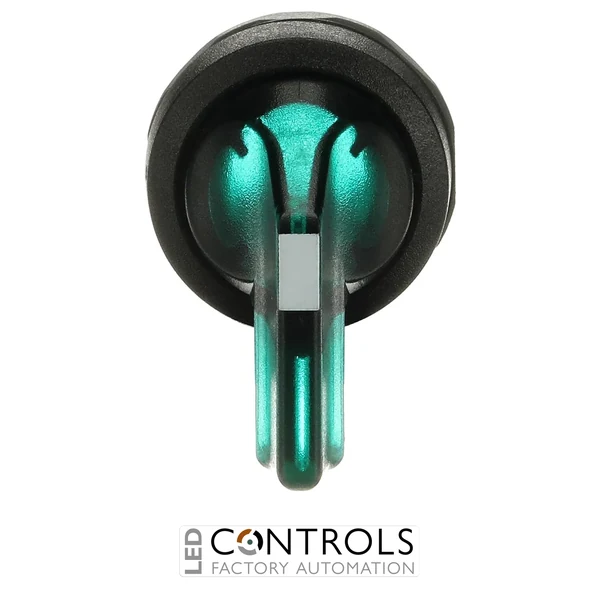

ABB M2SS5-11G is a green illuminated 2-position maintained A/C selector switch with a long-handle actuator, black plastic bezel and IP66 protection for 22 mm industrial control-panel applications.
The ABB M2SS5-11G is a compact and reliable 2-position illuminated selector switch designed for operator control and visual signalling in industrial machinery, electrical control panels and automation systems. Part of the ABB M2S Modular Plastic pilot device range, it features a green illuminated long-handle actuator with a black plastic bezel for clear and intuitive machine control.
The M2SS5-11G provides maintained A/C selector operation, allowing the selected position to remain active until the operator deliberately changes it. Its long-handle rotary actuator provides positive manual selection, while the green illuminated design supports clear visual indication of operating modes and machine functions.
Designed for the standard 22 mm pilot-device system, the M2SS5-11G integrates easily into industrial control panels and machinery. With IP66 protection and a modular construction that allows contact blocks and the illuminating unit to be selected separately, it provides a flexible operator interface for demanding industrial applications.
Key Advantages
Industrial 2-position illuminated selector switch for machinery and automation control.
Maintained A/C operating principle retains the selected position until manually changed.
Highly visible green illuminated long-handle actuator.
Black plastic bezel provides a clean industrial control-panel appearance.
Standard 22 mm mounting format simplifies integration into machinery and panels.
IP66 protection supports reliable operation in demanding industrial environments.
Key Features
ABB M2S Modular Plastic pilot device series.
2-position selector switch.
Maintained operating action.
A/C operating principle.
Long-handle rotary actuator.
Green illuminated operator.
Black plastic bezel.
IP66 protection rating.
Designed for 22 mm pilot-device mounting.
Contact blocks and illuminating unit are ordered separately.
Reliable Illuminated Control for Industrial Machinery
Maintained selector switches are used where an operator needs to select a machine state, operating mode or process function and have that selection remain active without continuously holding the actuator. The ABB M2SS5-11G provides this functionality through two stable A/C positions and a long-handle rotary interface that makes the selected state easy to identify.
The green illuminated operator adds visual signalling capability, while ABB's modular pilot-device architecture allows compatible contact blocks and an illuminating unit to be configured according to the requirements of the control circuit. This makes the M2SS5-11G suitable for new machinery, OEM control panels and compatible ABB pilot-device installations.
Typical Applications
Industrial machinery control panels.
Machine operating-mode selection.
Factory automation systems.
Process control equipment.
Production and assembly machinery.
Conveying and material handling systems.
OEM electrical and automation panels.
Technical Specifications
Tick the specs you need, then view products that match.
Illumination
Illuminated
Device Type
Selector Switch
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Green
Operation
2 positions – maintained
Series
M2S Modular Plastic Pilot Devices
ABB order code
1SFA611204R1102
Product group
312001 - Pilot Devices (Secrl)
Product type
Illuminated selector switch
Number of positions
2
Stable positions
2
Operating principle
A/C
Switching action
Maintained
Actuator type
Long handle
Actuator colour
Green
Illumination
Illuminated
Illumination colour
Green
Bezel
Black plastic
Switch standard
22 mm
Mounting hole diameter
Ø22.5 mm
Protection rating
IP66
Operating temperature
-25–70 °C
Contact blocks
Ordered separately
Illuminating unit
Ordered separately
Weight
approx. 0.018 kg
Frequently Asked Questions
What is the ABB M2SS5-11G used for?
The M2SS5-11G is an illuminated selector switch used for operator control, function selection and visual signalling in industrial machinery, automation equipment and electrical control panels.
How many positions does the ABB M2SS5-11G have?
The ABB M2SS5-11G is a 2-position selector switch with two stable A/C operating positions.
Is the ABB M2SS5-11G maintained or momentary?
The M2SS5-11G has maintained operation, meaning the selector remains in the chosen position until it is manually moved to the other position.
Is the ABB M2SS5-11G illuminated?
Yes. The M2SS5-11G is designed as an illuminated selector switch with a green long-handle actuator; the compatible illuminating unit is ordered separately.
Does the ABB M2SS5-11G include contact blocks?
No. Contact blocks are ordered separately, allowing the M2SS5-11G to be configured with compatible ABB modular components for the required control circuit.
