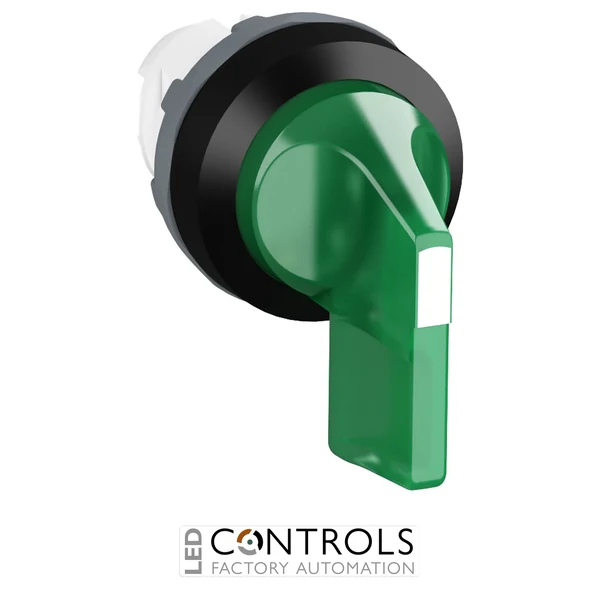

Why Choose the ABB M2SS6-11G Selector Switch?
The ABB M2SS6-11G is a robust 2-position illuminated selector switch designed for reliable operator control and visual signalling in industrial machinery, electrical control panels and automation systems. Part of the ABB Modular Plastic pilot device range, it features a green long-handle actuator with a black plastic bezel for a clear and intuitive industrial operator interface.
The M2SS6-11G provides momentary operation with spring return from C to B, making it suitable for control commands where the selector should automatically return to its normal position after release. Its long-handle rotary actuator provides positive manual operation, while the illuminated green design supports clear visual indication within machine and process-control systems.
Designed for standard 22 mm pilot-device mounting, the M2SS6-11G integrates easily into industrial control panels and machinery. With IP66 front protection, NEMA Type 4X suitability and high mechanical durability, it provides dependable operation in demanding industrial environments.
Key Advantages
- Industrial 2-position illuminated selector switch for machinery and automation control.
- Momentary spring-return action from C to B for temporary control commands.
- Highly visible green long-handle rotary actuator.
- Black plastic bezel for a clean industrial control-panel installation.
- Standard 22 mm mounting format simplifies integration into machinery and panels.
- IP66 front protection and NEMA Type 4X suitability for demanding environments.
Key Features
- ABB Modular Plastic pilot device range.
- 2-position illuminated selector switch.
- B/C operating principle.
- Momentary operation.
- Spring return from C to B.
- Long-handle rotary actuator.
- Green illuminated operator.
- Black plastic bezel.
- IP66 front protection rating.
- 0.5 million operations mechanical durability.
Reliable Spring-Return Control for Industrial Machinery
Momentary selector switches are particularly useful where an operator needs to issue a temporary machine or process command rather than leave a function continuously selected. The ABB M2SS6-11G provides this functionality through its B/C arrangement, with the actuator automatically returning from position C to position B when released.
The green illuminated operator adds visual signalling capability, while ABB's modular pilot-device architecture allows compatible holders, contact blocks and illumination components to be configured according to the requirements of the control circuit. This makes the M2SS6-11G suitable for new machinery, OEM control panels and compatible ABB pilot-device installations.
Typical Applications
- Industrial machinery control panels.
- Momentary machine function commands.
- Factory automation systems.
- Process control equipment.
- Production and assembly machinery.
- Conveying and material handling systems.
- OEM electrical and automation panels.
