Why Choose the ABB M2SS6-11Y Selector Switch?
The ABB M2SS6-11Y is a robust two-position illuminated selector switch operator designed for industrial control panels, machinery and automation systems. Supplied under ABB order code 1SFA611205R1103, it forms part of ABB’s modular 22 mm pilot device range and provides reliable momentary control for machine functions and industrial operating commands.

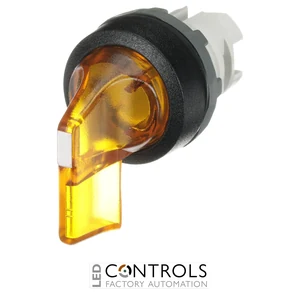

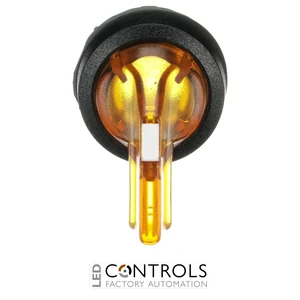

The M2SS6-11Y features a yellow long-handle operator with a black plastic bezel and momentary switching action. Its spring-return mechanism operates from position C back to position B, making it suitable for control commands where the selector must automatically return after the operator releases the handle.
Designed for installation in a standard 22 mm mounting hole, the M2SS6-11Y is illuminated and can be combined with compatible ABB holders, contact blocks and LED or lamp blocks. Its modular construction and high degree of front protection make it suitable for demanding industrial control-panel and machinery applications.
Key Advantages
- Industrial two-position illuminated selector switch operator for machinery and control panels.
- Momentary spring return from C to B for temporary control commands.
- Yellow long-handle operator provides clear visual identification and convenient operation.
- Designed for standard 22 mm panel mounting.
- IP66 front protection supports operation in demanding industrial environments.
- Modular construction supports compatible ABB contact blocks, holders and illumination components.
Key Features
- ABB M2SS6-11Y selector switch.
- ABB order code 1SFA611205R1103.
- Two selector positions.
- Momentary operating action.
- Spring return from C to B.
- Long-handle actuator.
- Yellow operator colour.
- Black plastic bezel.
- Illuminated design.
- 22 mm mounting-hole diameter.
- IP66 front protection.
- NEMA Type 4X protection.
Reliable Momentary Control for Industrial Machinery
Momentary selector switches provide operators with a reliable method of issuing temporary machine commands while ensuring that the actuator automatically returns to its normal position. The ABB M2SS6-11Y uses a two-position mechanism with spring return from C to B, making it suitable for functions where a command should only remain active while deliberately selected.
ABB’s modular pilot-device system allows the M2SS6-11Y to be combined with compatible holders, contact blocks and LED or lamp blocks. This flexible construction makes the selector switch operator suitable for new machinery, control-panel construction, system integration and replacement applications across industrial automation environments.
Typical Applications
- Industrial machinery control panels.
- Automation and production equipment.
- Momentary machine control commands.
- Motor and process control stations.
- Manufacturing and assembly equipment.
- Industrial operator stations and control desks.
- OEM electrical control systems and panel building.
