Why Choose the ABB M3SS1-11L Selector Switch?

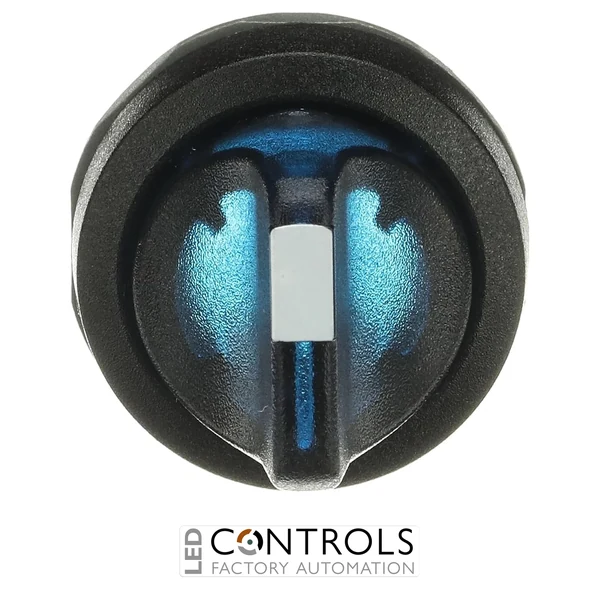

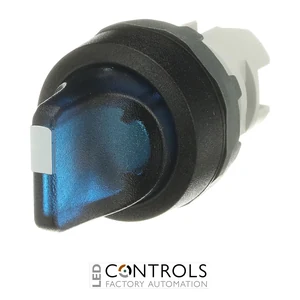

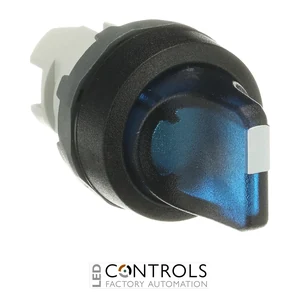

The ABB M3SS1-11L is a robust 3-position illuminated selector switch designed for reliable operator control and visual signalling in industrial machinery, electrical control panels and automation systems. Part of ABB's Modular Plastic pilot device range, it features a blue short-handle actuator with a black plastic bezel for a compact and intuitive operator interface.
The M3SS1-11L provides maintained A-B-C selector operation, with all three positions remaining stable until the operator deliberately changes the selection. This makes it particularly suitable for selecting machine operating modes, process functions and other applications where a persistent three-way control command is required.
Designed for standard 22 mm pilot-device installations with a nominal 22.5 mm panel cut-out, the M3SS1-11L integrates easily into industrial control panels. Its IP66 front protection, NEMA 4X rating and modular ABB construction provide a dependable and flexible operator interface for demanding industrial environments.
Key Advantages
- Industrial 3-position illuminated selector switch for machinery and automation control.
- Maintained A-B-C operation provides three stable selectable positions.
- Compact blue short-handle rotary actuator for clear operator control.
- Black plastic bezel provides a clean industrial panel appearance.
- Standard 22 mm modular mounting system simplifies panel integration.
- IP66 front protection and NEMA 4X rating support demanding industrial applications.
Key Features
- ABB Modular Plastic pilot device range.
- 3-position selector switch.
- Maintained switching action.
- A-B-C operating arrangement.
- Three stable positions.
- Short-handle rotary actuator.
- Blue illuminated operator.
- Black plastic bezel.
- IP66 front protection rating.
- 0.5 million operations mechanical durability.
- Contact block and illuminating unit are selected separately.
Reliable Three-Position Control for Industrial Machinery
Three-position maintained selector switches provide operators with a straightforward method of choosing between multiple machine states, operating modes or process functions. The ABB M3SS1-11L provides three stable A-B-C positions, allowing the selected state to remain active until the operator deliberately moves the short rotary handle to another position.
The blue illuminated operator adds visual signalling capability, while ABB's modular pilot-device architecture allows compatible holders, contact blocks and illuminating components to be configured according to the control-circuit requirements. This makes the M3SS1-11L suitable for new machinery, OEM control panels and compatible ABB pilot-device installations.
Typical Applications
- Industrial machinery control panels.
- Three-way machine operating-mode selection.
- Factory automation systems.
- Process control equipment.
- Production and assembly machinery.
- Conveying and material handling systems.
- OEM electrical and automation panels.
