Why Choose the ABB M3SS3-10R Selector Switch?

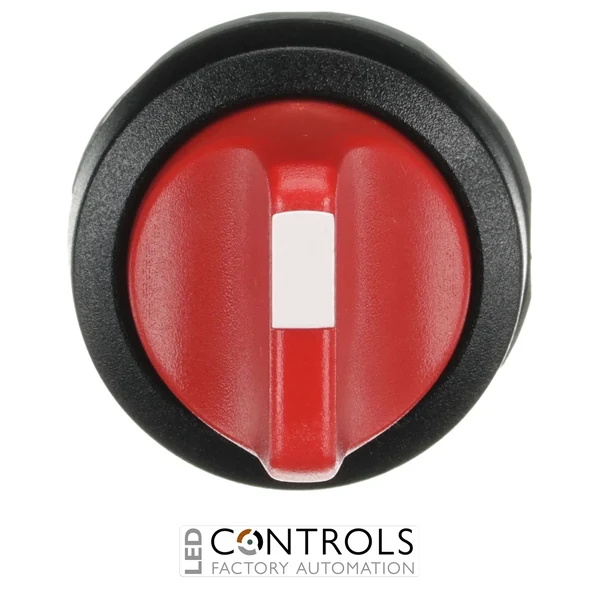

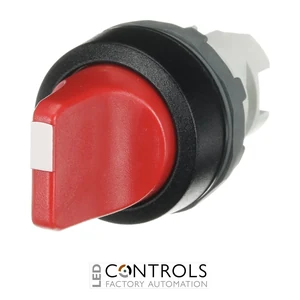

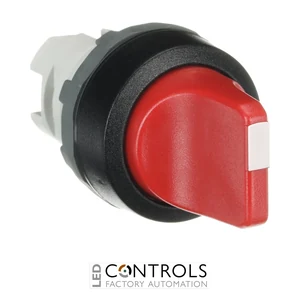

The ABB M3SS3-10R is a robust 3-position maintained/momentary selector switch designed for operator control in industrial machinery, electrical control panels and automation systems. Part of ABB's Modular Plastic pilot device range, it features a red short-handle rotary actuator with a black plastic bezel for a compact and intuitive operator interface.
The M3SS3-10R combines maintained and momentary operation: positions A and B are maintained, while position C spring-returns to B. This operating arrangement is particularly useful where a control system requires two stable selections together with an additional temporary command from the same three-position selector.
Designed for standard 22 mm pilot-device mounting, the M3SS3-10R provides IP66 front protection and NEMA 4X protection for demanding industrial environments. Its modular construction allows compatible ABB contact blocks to be selected separately according to the required control-circuit configuration.
Key Advantages
- Industrial 3-position selector switch for machinery and automation control.
- Combines maintained and momentary functions in one compact operator.
- A and B maintained positions provide stable control selections.
- Spring return from C to B provides an additional temporary command.
- Compact red short-handle actuator with a black plastic bezel.
- IP66 front protection and NEMA 4X protection support demanding industrial applications.
Key Features
- ABB Modular Plastic pilot device range.
- 3-position selector switch.
- A-B-C operating arrangement.
- Maintained/momentary switching function.
- Maintained positions A and B.
- Spring return from C to B.
- Short-handle rotary actuator.
- Red actuator.
- Non-illuminated design.
- Black plastic bezel.
- 0.5 million operations mechanical durability.
- Supplied without contact block for modular configuration.
Combined Maintained and Momentary Control
Selector switches that combine maintained and spring-return functions allow multiple types of operator command to be provided from a single control point. On the ABB M3SS3-10R, positions A and B remain mechanically selected, while moving the handle to position C provides a momentary command before the actuator automatically returns to position B when released.
This operating principle makes the M3SS3-10R useful for applications where two normal operating states must be combined with an additional temporary function. ABB's modular pilot-device architecture allows compatible contact blocks to be configured according to the required electrical logic, making the selector suitable for machinery, OEM panels and industrial automation installations.
Typical Applications
- Industrial machinery control panels.
- Operating-mode and temporary-command selection.
- Machine positioning and jogging functions.
- Factory automation systems.
- Process control equipment.
- Production and assembly machinery.
- Conveying and material handling systems.
- OEM electrical and automation panels.
