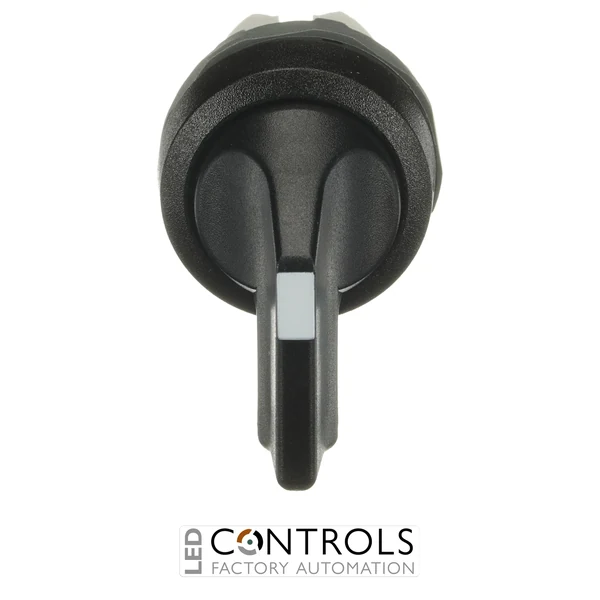

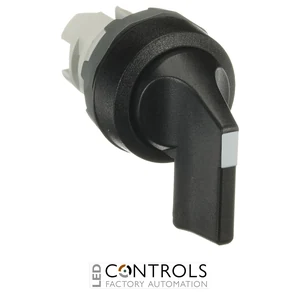

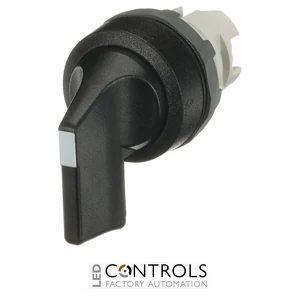

ABB M3SS4-10B 1SFA611213R1006 is a black three-position maintained non-illuminated selector switch operator with a long handle, black plastic bezel and 22 mm mounting for industrial control panels.
The ABB M3SS4-10B is a robust three-position maintained non-illuminated selector switch operator designed for industrial control panels, machinery and automation systems. Supplied under ABB order code 1SFA611213R1006, it forms part of ABB’s modular plastic pilot device range and provides dependable manual mode and function selection.
The M3SS4-10B features a black long-handle operator with a black plastic bezel. Its three-position A-B-C mechanism uses maintained operation, allowing the selected handle position to remain in place until it is deliberately changed by the operator.
Designed for ABB’s 22 mm modular pilot device system, the M3SS4-10B is supplied as a selector switch operator without a contact block. Its modular construction allows compatible ABB holders and contact blocks to be selected according to the required electrical switching arrangement.
Key Advantages
Industrial three-position maintained selector switch operator for machinery and control panels.
Maintained operation keeps the selected position until manually changed.
Three stable positions provide straightforward selection between A, B and C operating states.
Black long-handle actuator provides convenient manual operation and clear position indication.
Black plastic bezel integrates with ABB’s modular plastic pilot device range.
IP66 front protection supports installation in demanding industrial environments.
Key Features
ABB M3SS4-10B selector switch.
ABB order code 1SFA611213R1006.
Three selector positions.
A-B-C operating principle.
Maintained operating action.
Long-handle actuator.
Black operator colour.
Black plastic bezel.
Non-illuminated design.
22 mm mounting system.
IP66 protection rating.
Modular operator supplied without an integrated contact block.
Reliable Maintained Control for Industrial Machinery
Three-position maintained selector switches are well suited to machine functions where an operator needs to select and retain one of several operating states. The ABB M3SS4-10B provides three stable positions, A, B and C, with a maintained mechanism that keeps the long handle in the selected position until it is manually moved.
ABB’s modular pilot-device construction allows the M3SS4-10B to be combined with compatible holders and contact blocks according to the required electrical switching arrangement. This flexibility makes the selector suitable for new machinery, control-panel construction, system integration, maintenance and replacement applications.
Typical Applications
Industrial machinery control panels.
Machine operating-mode selection.
Manual, off and automatic control arrangements.
Direction and process selection functions.
Automation and production equipment.
Motor and process control stations.
OEM electrical control systems and panel building.
Technical Specifications
Tick the specs you need, then view products that match.
Illumination
Non-illuminated
Device Type
Selector Switch
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Black
Operation
3 positions
Product group
312001-Pilot Devices (Secrl)
Product range
Modular Plastic Range
Product main type
M3SS4
Order code
1SFA611213R1006
Product type
Non-illuminated selector switch operator
Number of positions
3
Operating positions
A, B, C
Operating action
Maintained
Actuator type
Long handle
Operator colour
Black
Bezel colour
Black
Bezel material
Plastic
Illumination
Non-illuminated
Nominal mounting system
22 mm
Front protection rating
IP66
Mechanical durability
0.5 million operations
Operating temperature
-25 to +70 °C
Contact block
Not included
Weight
0.018 kg
EAN
7320500296981
Frequently Asked Questions
What is the ABB M3SS4-10B used for?
The ABB M3SS4-10B is a three-position maintained selector switch operator designed for industrial control applications where a selected operating position needs to remain engaged until manually changed.
What is the ABB order code for the M3SS4-10B?
The ABB order code for the M3SS4-10B is 1SFA611213R1006.
How does the ABB M3SS4-10B operate?
The M3SS4-10B has three maintained positions, A, B and C. The long handle remains in the selected position until the operator manually moves it to another position.
Is the ABB M3SS4-10B illuminated?
No. The M3SS4-10B is a non-illuminated selector switch operator with a black long handle and black plastic bezel.
Does the ABB M3SS4-10B include a contact block?
No. The M3SS4-10B is supplied as a modular selector switch operator without a contact block and can be combined with compatible ABB holders and contact blocks for the required switching function.
Trusted Industrial Control from ABB
ABB modular pilot devices provide machine builders, panel builders and automation engineers with flexible operator components designed for dependable control and signalling across industrial machinery and electrical control-panel applications.
Illumination
Non-illuminated
Device Type
Selector Switch
Product Series
ABB Modular
Mounting Diameter
22 mm
Colour
Black
Operation
3 positions
Product group
312001-Pilot Devices (Secrl)
Product range
Modular Plastic Range
Product main type
M3SS4
Order code
1SFA611213R1006
Product type
Non-illuminated selector switch operator
Number of positions
3
Operating positions
A, B, C
Operating action
Maintained
Actuator type
Long handle
Operator colour
Black
Bezel colour
Black
Bezel material
Plastic
Illumination
Non-illuminated
Nominal mounting system
22 mm
Front protection rating
IP66
Mechanical durability
0.5 million operations
Operating temperature
-25 to +70 °C
Contact block
Not included
Weight
0.018 kg
EAN
7320500296981
