Why Choose the ABB M3SS4-11R Selector Switch?

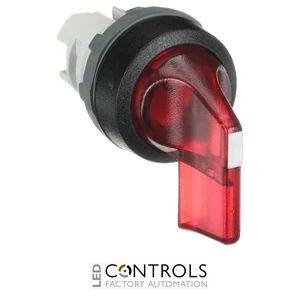

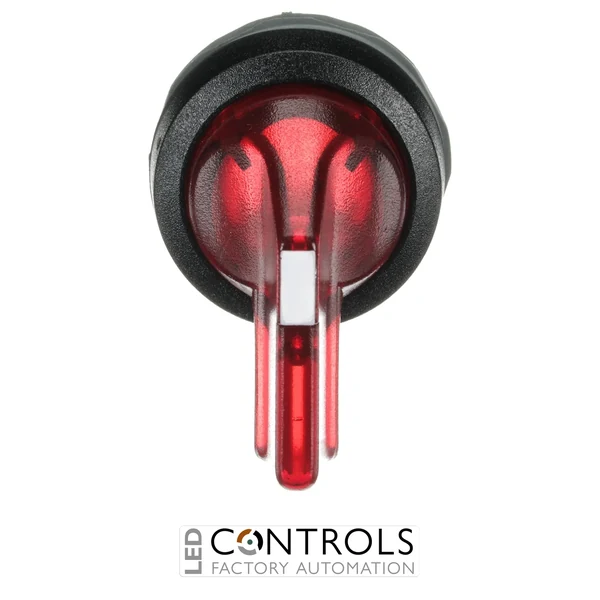

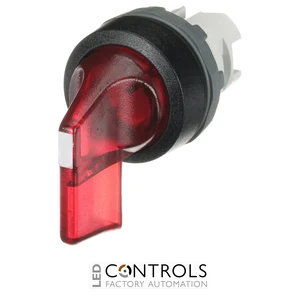

The ABB M3SS4-11R is a robust 3-position illuminated maintained selector switch designed for operator control and visual signalling in industrial machinery, automation systems and electrical control panels. Part of ABB's Modular Plastic pilot device range, it features a red long-handle rotary actuator with a black plastic bezel for clear and intuitive machine control.
The M3SS4-11R provides maintained A-B-C operation, with three fixed selector positions that remain selected until the operator deliberately moves the handle. Its long-handle design provides a positive rotary interface, while the illuminated red actuator supports visual status indication when combined with a compatible ABB illumination component.
Designed for standard 22 mm pilot-device mounting, the M3SS4-11R provides IP66 front protection and NEMA 4X protection for demanding industrial environments. ABB's modular architecture allows compatible contact blocks and illumination components to be selected separately according to the required electrical control configuration.
Key Advantages
- Industrial 3-position illuminated maintained selector switch for machinery and automation control.
- A-B-C operation provides three stable selectable positions.
- Red long-handle actuator provides positive and intuitive rotary operation.
- Illumination capability supports clear visual status indication.
- Black plastic bezel provides a compact industrial panel interface.
- Standard 22 mm mounting format simplifies integration into control panels.
- IP66 front protection and NEMA 4X protection support demanding environments.
Key Features
- ABB Modular Plastic pilot device range.
- 3-position illuminated selector switch.
- A-B-C operating arrangement.
- Maintained / latching switching action.
- Three fixed positions.
- No spring-return function.
- Long rotary handle.
- Red actuator.
- Suitable for illumination.
- Black plastic bezel.
- 22 mm panel mounting.
- Supplied without contact block for modular configuration.
Reliable Maintained Three-Position Control
Three-position maintained selector switches provide a straightforward way to choose between multiple machine states, operating modes or process functions from a single panel-mounted operator. The ABB M3SS4-11R provides three fixed A-B-C positions, allowing the selected state to remain mechanically latched until the operator deliberately moves the long rotary handle.
The red illuminated operator supports visual signalling and clear identification, while ABB's modular pilot-device architecture allows compatible contact blocks and illumination components to be configured according to the required control logic. This makes the M3SS4-11R suitable for new machinery, OEM panels and compatible ABB pilot-device installations.
Typical Applications
- Industrial machinery control panels.
- Three-position operating-mode selection.
- Manual / off / automatic control functions.
- Factory automation systems.
- Process control equipment.
- Production and assembly machinery.
- Conveying and material handling systems.
- OEM electrical and automation panels.
