Why Choose the ABB M3SS4-21R Selector Switch?

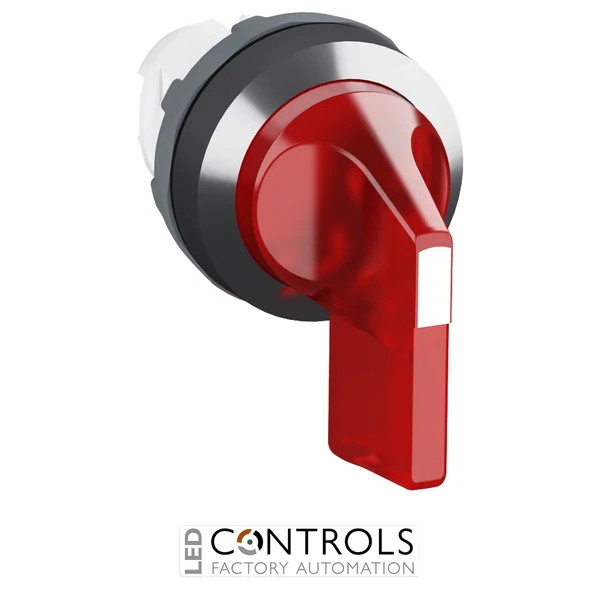

The ABB M3SS4-21R is a robust 3-position illuminated maintained selector switch designed for operator control and visual signalling in industrial machinery, automation systems and electrical control panels. Part of ABB's Modular Plastic pilot device range, it features a red long rotary handle with a chrome plastic bezel for a distinctive and professional operator interface.
The M3SS4-21R provides maintained A-B-C operation, with three stable positions that remain selected until the operator deliberately moves the handle. Its long-handle actuator provides positive rotary operation, while the red operator is suitable for illumination to provide visual status indication when used with a compatible ABB illumination component.
Designed for standard 22 mm pilot-device mounting, the M3SS4-21R provides IP66 front protection and NEMA 4X protection for demanding industrial environments. ABB's modular architecture allows compatible contact blocks and illumination components to be selected separately according to the required control-circuit configuration.
Key Advantages
- Industrial 3-position illuminated maintained selector switch for machinery and automation control.
- A-B-C operation provides three stable selectable positions.
- Red long rotary handle provides positive and intuitive operator control.
- Illumination capability supports clear visual status indication.
- Professional chrome plastic bezel for industrial control-panel installations.
- Standard 22 mm mounting format simplifies panel integration.
- IP66 front protection and NEMA 4X protection support demanding environments.
Key Features
- ABB Modular Plastic pilot device range.
- 3-position illuminated selector switch.
- A-B-C operating arrangement.
- Maintained / latching switching action.
- Three maintained positions.
- No spring-return function.
- Long rotary handle.
- Red actuator and indicator-light cap.
- Suitable for illumination.
- Chrome plastic bezel.
- 0.5 million operations mechanical durability.
- Supplied without contact block for modular configuration.
Reliable Maintained Three-Position Control
Three-position maintained selector switches provide a straightforward method of selecting between multiple machine states, operating modes or process functions from a single panel-mounted operator. The ABB M3SS4-21R provides three maintained A-B-C positions, allowing each selected state to remain mechanically latched until the operator deliberately moves the long rotary handle.
The red operator is suitable for illumination to support visual signalling, while the chrome plastic bezel provides a clean industrial panel appearance. ABB's modular pilot-device architecture allows compatible contact blocks and illumination components to be configured according to the required electrical control logic, making the M3SS4-21R suitable for new machinery, OEM panels and compatible ABB pilot-device installations.
Typical Applications
- Industrial machinery control panels.
- Three-position operating-mode selection.
- Manual / off / automatic control functions.
- Factory automation systems.
- Process control equipment.
- Production and assembly machinery.
- Conveying and material handling systems.
- OEM electrical and automation panels.
