Why Choose the ABB M3SS5-10R Selector Switch?

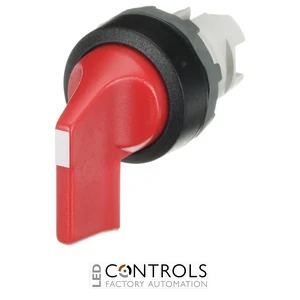

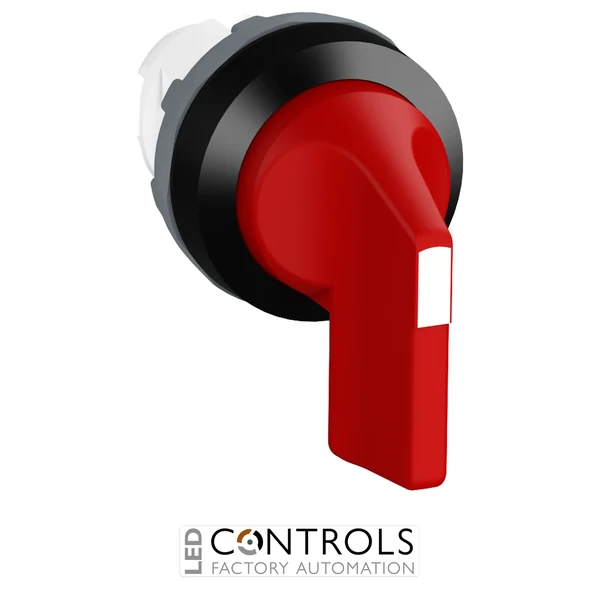

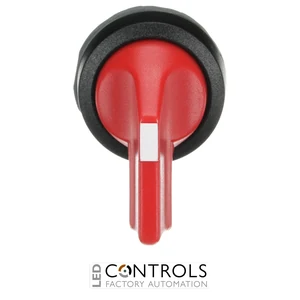

The ABB M3SS5-10R is a robust three-position non-illuminated selector switch operator designed for industrial control panels, machinery and automation equipment. Part of ABB’s modular pilot device range, it combines a distinctive red long-handle operator with a black plastic bezel for clear and convenient manual control.
The M3SS5-10R uses a momentary operating action with spring return from position A to B and from position C to B. This means the selector automatically returns to its centre B position when released from either outer position, making it particularly suitable for directional, jog and other temporary control commands.
ABB order code 1SFA611214R1001 identifies this exact M3SS5-10R operator. Its modular construction allows it to be combined with compatible ABB contact blocks and holders to create a selector-switch assembly tailored to the required control circuit.
Key Advantages
- Three-position selector switch operator for industrial control applications.
- Momentary spring-return operation from A to B and C to B.
- Long handle provides convenient and positive manual operation.
- Red operator provides clear visual identification on control panels.
- Black plastic bezel suits ABB modular pilot-device installations.
- Modular design supports configuration with compatible ABB contact blocks and holders.
Key Features
- ABB M3SS modular selector switch range.
- Three operating positions: A, B and C.
- Momentary action with spring return to centre position B from both outer positions.
- Long-handle operator design.
- Red handle with black plastic bezel.
- Non-illuminated construction.
- Designed for use with compatible modular contact blocks and holders.
- Compact operator weight of approximately 0.018 kg.
Reliable Manual Control for Industrial Equipment
Selector switches provide operators with a simple physical interface for selecting machine functions and issuing control commands. A three-position momentary selector such as the ABB M3SS5-10R is particularly useful where a command should remain active only while the operator deliberately holds the switch in an outer position.
Because the M3SS5-10R springs back to the centre B position from both A and C, it is well suited to functions such as forward/reverse movement, raise/lower commands, positioning and manual jogging. Its modular ABB design also allows compatible contact arrangements to be selected according to the requirements of the control circuit.
Typical Applications
- Industrial machine control panels.
- Factory automation equipment.
- Forward and reverse control commands.
- Raise and lower control functions.
- Manual jog and positioning controls.
- Conveyors and material handling machinery.
- OEM machinery and electrical control systems.
