Why Choose the ABB M3SS7-11C Selector Switch?

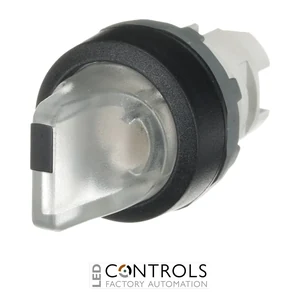

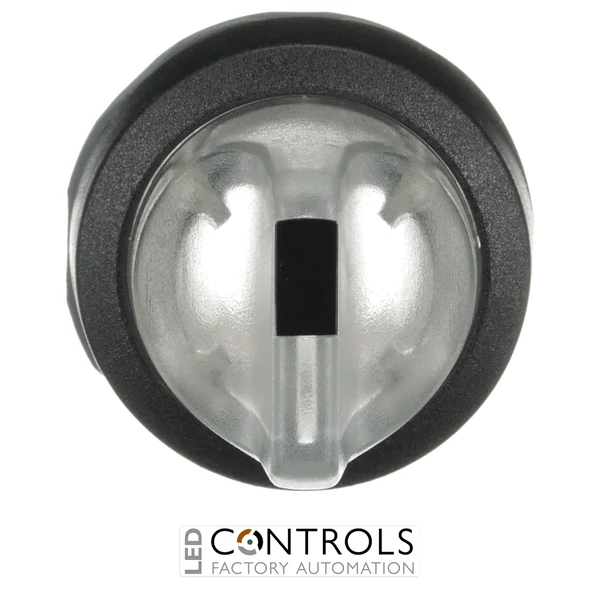

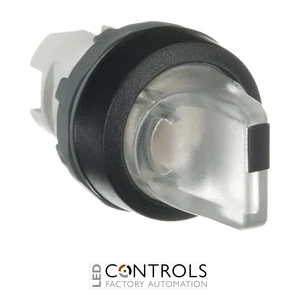

The ABB M3SS7-11C is a versatile three-position illuminated selector switch operator designed for industrial control panels, machinery and automation systems. Part of ABB’s modular pilot device range, it features a clear short-handle actuator with a black plastic bezel, providing dependable manual control with illumination capability.
The M3SS7-11C combines maintained and momentary functionality. It provides momentary spring return from position A to B, while the other selector positions provide retained selection, making it suitable for applications requiring both a temporary command and maintained operating positions from a single operator.
ABB order code 1SFA611216R1108 identifies this exact M3SS7-11C selector switch operator. Its modular construction allows it to be combined with compatible ABB holders, contact blocks and LED or lamp blocks, while the illumination system supports a bulb of up to 2 W.
Key Advantages
- Three-position illuminated selector switch for industrial control applications.
- Momentary spring return from A to B for temporary control commands.
- Retained selector positions support operating-mode selection.
- Clear short-handle actuator enables illumination and clear operator identification.
- Black plastic bezel for integration with ABB modular pilot devices.
- Modular construction supports compatible ABB contact blocks and illumination components.
Key Features
- ABB M3SS7 modular selector switch.
- Three operating positions: A, B and C.
- Momentary position A with spring return to B.
- Short-handle actuator.
- Clear actuator.
- Illuminated operator.
- Black plastic bezel.
- Bulb capacity up to 2 W.
- Bulb, contact blocks and holder selected separately.
- Approximate operator weight of 0.015 kg.
Flexible Selector Control for Industrial Machinery
Selector switches provide operators with a straightforward physical interface for selecting machine modes and issuing control commands. The ABB M3SS7-11C combines retained selection with a spring-return function, enabling both maintained and temporary commands within an industrial control system.
The clear illuminated short handle improves visual identification and can be combined with a compatible ABB LED or lamp block for status indication. Its modular design also allows suitable contact blocks to be selected according to the electrical switching requirements of the application.
Typical Applications
- Industrial machine control panels.
- Factory automation equipment.
- Operating-mode selection systems.
- Manual machine control functions.
- Conveyors and material handling equipment.
- Production and process machinery.
- OEM machinery and electrical control systems.
