Why Choose the ABB M3SSC1-30B Selector Switch?
The ABB M3SSC1-30B is a robust three-position maintained selector switch designed for industrial machinery, control panels and automation systems. Part of the ABB modular pilot devices range, it provides dependable manual selection between three defined machine or process operating states.

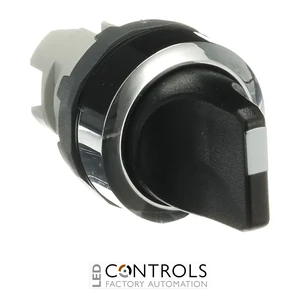

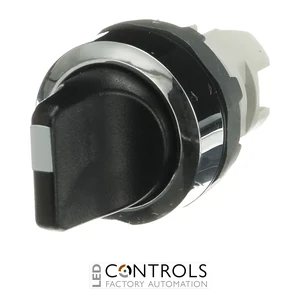

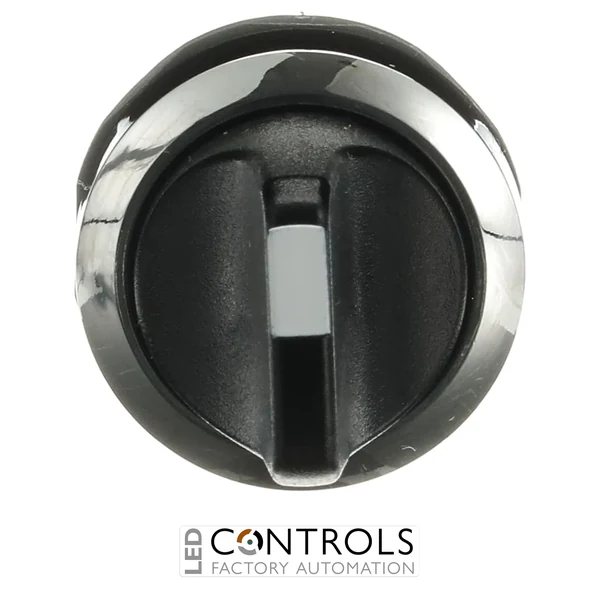

This selector switch features a black short-handle actuator, three A-B-C operating positions and a chrome-metal front bezel. Its maintained operating principle means the selected position remains mechanically latched until the operator deliberately moves the handle, making it suitable for mode selection and other functions requiring stable three-state control.
Designed for standard 22 mm panel mounting, the M3SSC1-30B provides IP66 front protection and NEMA Type 4X protection. The operator is non-illuminated and supplied without contact blocks, allowing compatible ABB modular holders and contact blocks to be selected according to the required electrical switching arrangement.
Key Advantages
- Three-position maintained operation provides stable A-B-C machine or process selection.
- Black short-handle actuator provides convenient manual operation.
- Chrome-metal bezel provides a durable and professional industrial panel finish.
- Standard 22 mm panel mounting supports straightforward control-panel integration.
- IP66 front protection and NEMA Type 4X protection suit demanding industrial environments.
- Modular ABB construction allows compatible contact blocks to be selected for the required control circuit.
Key Features
- ABB M3SSC1 modular selector switch.
- Three-position A-B-C operation.
- Maintained / latching switching function.
- No spring return.
- Black short-handle actuator.
- Chrome-metal front bezel.
- Non-illuminated construction.
- 22 mm mounting-hole diameter.
- IP66 front protection.
- NEMA Type 4X protection.
Reliable Three-Position Control for Industrial Machinery
Three-position maintained selector switches provide operators with a straightforward method of choosing between multiple machine functions or operating states. The ABB M3SSC1-30B provides A-B-C selection with latching operation and no spring return, so the chosen handle position remains selected until the operator intentionally changes it.
The ABB modular pilot-device platform allows the M3SSC1-30B to be combined with compatible holders and contact blocks according to the required electrical switching arrangement. Its standard 22 mm mounting format, chrome-metal bezel and robust front protection make it well suited to industrial operator stations requiring dependable three-state manual selection.
Typical Applications
- Industrial machinery control panels.
- Machine operating-mode selection.
- Operator control stations and consoles.
- Directional and process control functions.
- Production and manufacturing equipment.
- Material handling and conveyor control systems.
- OEM machinery and electrical control assemblies.
