Why Choose the ABB M3SSC5-10B Selector Switch?
The ABB M3SSC5-10B is a robust three-position momentary selector switch designed for industrial machinery, control panels and automation systems. Part of the ABB modular pilot devices range, it provides dependable manual control where temporary selector commands and automatic return to the centre position are required.

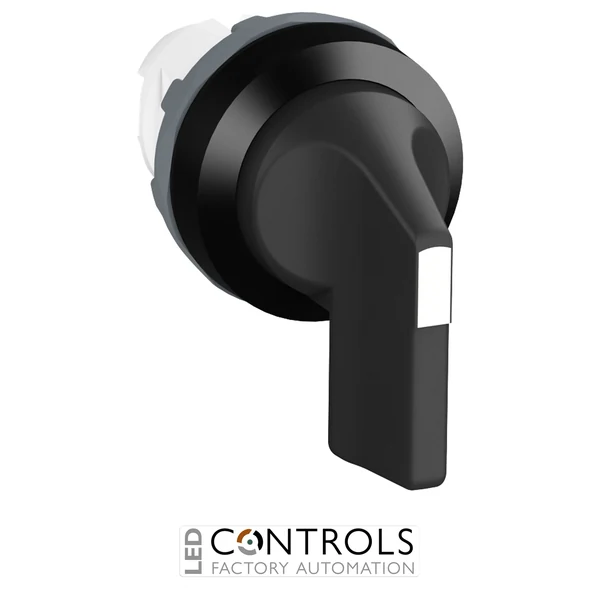

This selector switch features a black long turning handle with A-B-C operating positions. It provides spring return from A to B and from C to B, so either outer position automatically returns to the centre B position when the operator releases the handle, making it ideal for directional, jog and temporary command functions.
Designed for standard 22 mm panel mounting, the M3SSC5-10B has a black plastic front ring, non-illuminated construction and IP66 front protection. It is supplied without a contact block, allowing compatible ABB modular holders and contact blocks to be selected according to the required electrical switching arrangement.
Key Advantages
- Three-position momentary operation provides temporary A-B-C machine or process control.
- Spring return from both A and C to B automatically restores the selector to its centre position.
- Black long turning handle provides positive and convenient manual operation.
- Standard 22 mm panel mounting supports straightforward integration into industrial control panels.
- IP66 front protection supports installation in demanding industrial environments.
- Modular ABB construction allows compatible contact blocks to be selected for the required control circuit.
Key Features
- ABB M3SSC5 modular selector switch.
- Three-position A-B-C operation.
- Momentary switching function.
- Spring return from A to B.
- Spring return from C to B.
- Black long turning handle.
- Black plastic front ring.
- Non-illuminated construction.
- 22 mm mounting-hole diameter.
- IP66 front protection.
Reliable Spring-Return Control for Industrial Machinery
Three-position momentary selector switches provide operators with a straightforward method of issuing temporary commands in either direction from a defined centre position. The ABB M3SSC5-10B provides A-B-C operation with spring return from both outer positions to B, automatically restoring the operator to its centre position when released.
This operating arrangement is particularly useful for jog, raise/lower, forward/reverse and similar temporary machine-control functions. As part of ABB's modular pilot-device platform, the M3SSC5-10B can be combined with compatible holders and contact blocks according to the required electrical switching arrangement.
Typical Applications
- Industrial machinery control panels.
- Forward/reverse temporary control functions.
- Raise/lower and open/close controls.
- Machine jogging and positioning commands.
- Material handling and conveyor equipment.
- Production and process automation systems.
- OEM machinery and electrical control assemblies.
