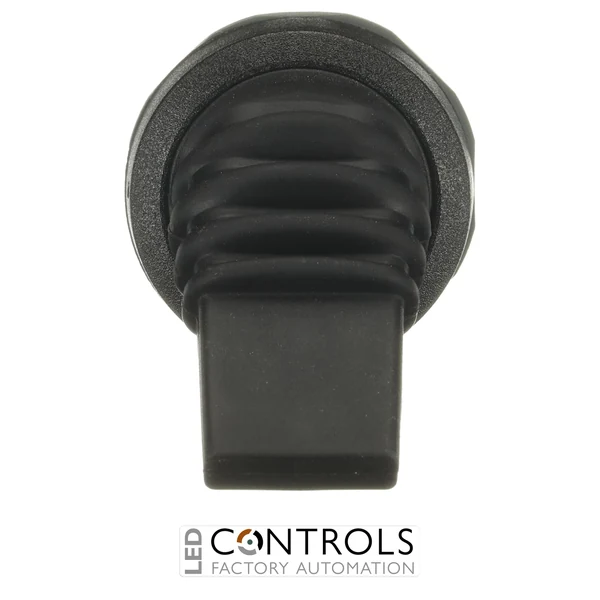

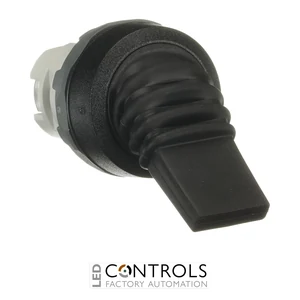

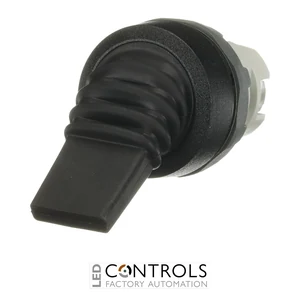

Why Choose the ABB MTS1-10B Toggle Switch?
The ABB MTS1-10B is a robust two-position maintained toggle switch operator designed for industrial machinery, automation systems and electrical control panels. Part of the ABB modular pilot devices range, it provides straightforward manual switching between two stable operating positions for machine and process control applications.
The MTS1-10B features two maintained positions, A and C, so the toggle remains in the selected position after operation. Its black toggle actuator and black plastic bezel provide a compact industrial control interface, while the non-illuminated construction is well suited to applications where simple mechanical position selection is required.
Designed for standard 22 mm-class panel mounting, the MTS1-10B forms part of ABB's modular operator system and is supplied without a contact block. Suitable ABB holders and contact blocks can therefore be selected according to the required control circuit, while IP66 front protection supports dependable operation in demanding industrial environments.
Key Advantages
- Two-position maintained toggle switch for reliable industrial control.
- A and C stable positions remain selected after the toggle is released.
- Black toggle actuator and black plastic bezel provide a compact industrial interface.
- IP66 front protection supports operation in demanding environments.
- Standard 22 mm-class panel mounting suits industrial control stations.
- Modular construction allows suitable ABB contact blocks to be selected for the application.
Key Features
- ABB MTS modular toggle switch range.
- Two operating positions.
- Maintained / latching switching action.
- A and C operating positions.
- Toggle actuator.
- Black actuator colour.
- Black plastic bezel.
- Non-illuminated design.
- IP66 front degree of protection.
- Modular construction for use with suitable ABB holders and contact blocks.
Reliable Maintained Control for Industrial Machinery
Maintained toggle switches provide a simple method of selecting between defined machine or process states. Unlike a momentary operator, the toggle remains in its selected position after being released, providing a clear visual and tactile indication of the current control state.
The ABB MTS1-10B combines two stable operating positions with ABB's modular pilot-device architecture. This allows the operator to be paired with suitable holders and contact blocks according to the electrical switching requirements of the application, providing flexibility for machine builders and industrial panel designers.
Typical Applications
- Industrial machinery control panels.
- Machine function selection.
- Automation and production equipment.
- Motor and process control systems.
- Conveyor and material handling equipment.
- OEM machinery and operator stations.
