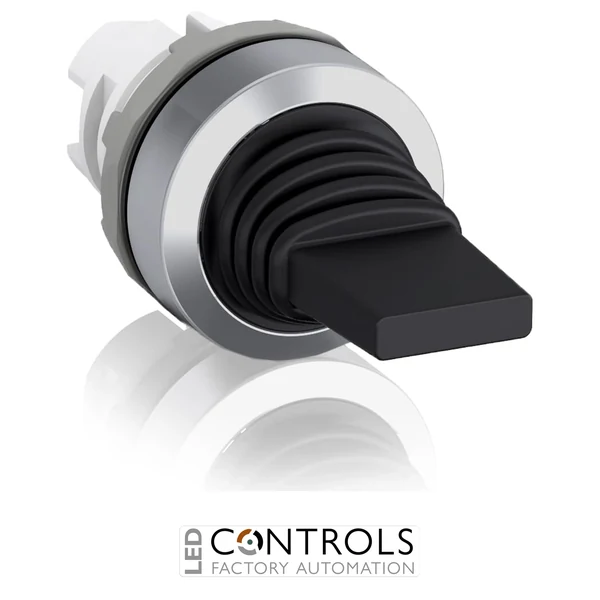

Why Choose the ABB MTS2-20B Toggle Switch?
The ABB MTS2-20B is a robust 3-position momentary toggle switch designed for reliable operator control in industrial machinery, control panels and automation systems. Part of the ABB modular pilot device range, it combines a black toggle actuator with a chrome-plastic bezel and is designed for installation in standard 22 mm control-panel openings.
The MTS2-20B provides momentary operation with spring return to the centre position from either outer position, making it well suited to directional, jog and other operator commands where the control should automatically return when released. Its modular construction allows the operator to be combined with suitable ABB holders and contact blocks according to the required control circuit.
Designed for demanding industrial environments, the MTS2-20B provides IP66 front-side protection when correctly installed. The operator is non-illuminated and supplied without a contact block, allowing the required contact arrangement to be selected separately for the application.
Key Advantages
- 3-position momentary toggle operation for intuitive machine control.
- Spring return to centre from both outer operating positions.
- Standard 22 mm panel mounting for industrial control panels.
- IP66 front-side protection for dependable operation in demanding environments.
- Black toggle actuator with an attractive chrome-plastic bezel.
- Modular ABB design allows compatible holders and contact blocks to be selected for the required control function.
Key Features
- ABB MTS2 modular toggle switch.
- 3-position momentary operating function.
- Spring return from the left and right positions to the centre position.
- Black toggle actuator.
- Chrome-plastic bezel.
- 22 mm mounting-hole diameter.
- IP66 degree of protection at the front.
- Non-illuminated operator design.
- Supplied without contact block.
- Designed for modular industrial pilot-device assemblies.
Reliable Operator Control for Industrial Machinery
Momentary toggle switches provide operators with a clear mechanical interface for issuing temporary machine commands. With the ABB MTS2-20B, moving the toggle to either outer position operates the selected control function, while releasing the actuator causes it to spring back to its centre position.
The modular ABB pilot-device design allows the MTS2-20B operator to be integrated with compatible holders and contact blocks to create a control arrangement suited to the application. Its 22 mm mounting format makes it suitable for industrial control panels, operator stations and machine-control enclosures.
Typical Applications
- Industrial machinery control panels.
- Forward and reverse control commands.
- Jog and inching control circuits.
- Material handling and conveyor equipment.
- Machine-tool operator stations.
- Production and packaging machinery.
- OEM automation and control systems.
