Why Choose the ABB MT-110B 10K Potentiometer?

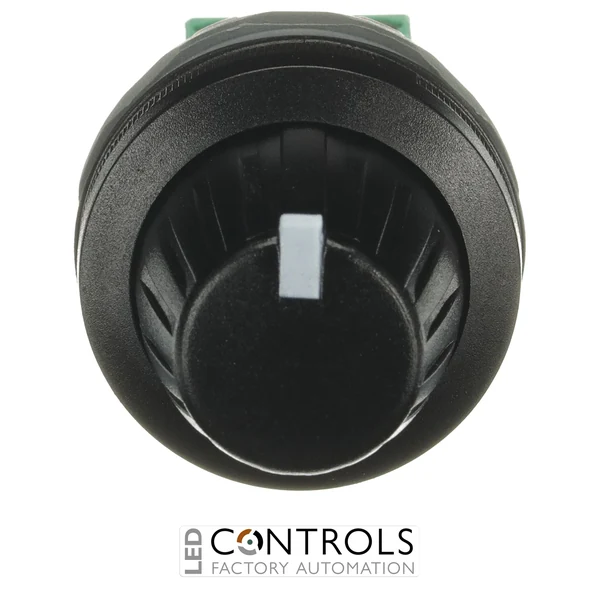

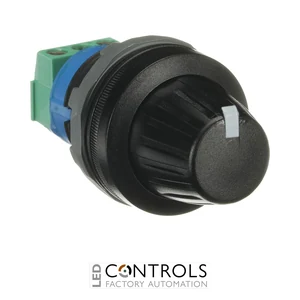

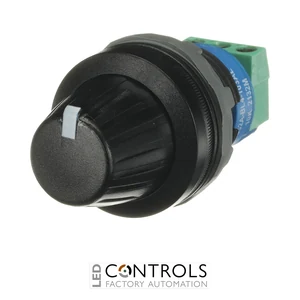

The ABB MT-110B is a complete 10 kΩ rotary potentiometer designed for industrial control panels, machinery and automation systems requiring adjustable analogue control. Supplied under ABB order code 1SFA611410R1106 and also referenced as KT-110, it forms part of ABB's modular pilot device range and provides a convenient panel-mounted control for applications such as speed, level and process set-point adjustment.
The MT-110B combines a 10 kΩ resistor with a black rotary knob featuring integrated position indication and white marking. Its single-turn rotary action enables an operator to make straightforward manual adjustments, while screw terminals provide a practical electrical connection for integration into industrial control circuits.
Featuring a black plastic bezel, non-illuminated construction and compact panel-mounted design, the MT-110B integrates neatly with industrial operator panels. The potentiometer has a 2 W power rating and is suitable for operating temperatures from -25 to +70 °C, making it a versatile adjustable control component for machinery and automation applications.
Key Advantages
- Complete 10 kΩ potentiometer for industrial control applications.
- Single-turn rotary adjustment provides straightforward manual set-point control.
- Black knob with integrated position indication and white marking.
- 2 W power rating for industrial control circuits.
- Screw-terminal connections simplify control-panel wiring.
- Compact panel-mounted construction suitable for machinery, automation and OEM equipment.
Key Features
- ABB MT modular potentiometer range.
- 10 kΩ resistance.
- Single-turn rotary potentiometer.
- 2 W rated power.
- Black rotary knob actuator.
- Integrated position indication with white marking.
- Black plastic bezel.
- Non-illuminated design.
- Screw-terminal connection.
- Panel-mounted format for industrial control equipment.
Adjustable Control for Industrial Machinery
Rotary potentiometers provide a simple method of generating an adjustable resistance value for control and set-point circuits. In industrial equipment, they can be used as manual operator controls for functions such as motor speed references, process settings and other continuously adjustable control parameters when used with compatible control electronics.
The ABB MT-110B combines a 10 kΩ resistor with a single-turn black control knob and integrated position indication. Its panel-mounted format, screw-terminal connection and compact modular construction make it suitable for incorporation into machinery, operator stations and industrial automation control panels.
Typical Applications
- Variable speed drive reference controls.
- Industrial machinery control panels.
- Manual process set-point adjustment.
- Production and manufacturing equipment.
- Automation and process control systems.
- Operator stations and control consoles.
- OEM machinery and electrical control assemblies.
