Why Choose the ABB MPMP4-10R Emergency Stop?
The ABB MPMP4-10R is a robust red modular emergency stop operator designed for industrial machinery, control panels and automation safety systems. Part of the ABB Modular plastic pilot device range, it combines a large mushroom actuator with mechanically latched operation for clear and dependable emergency-stop control.

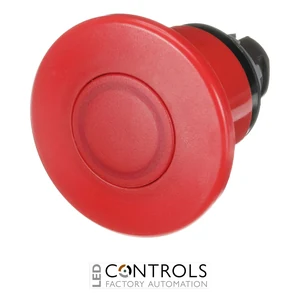

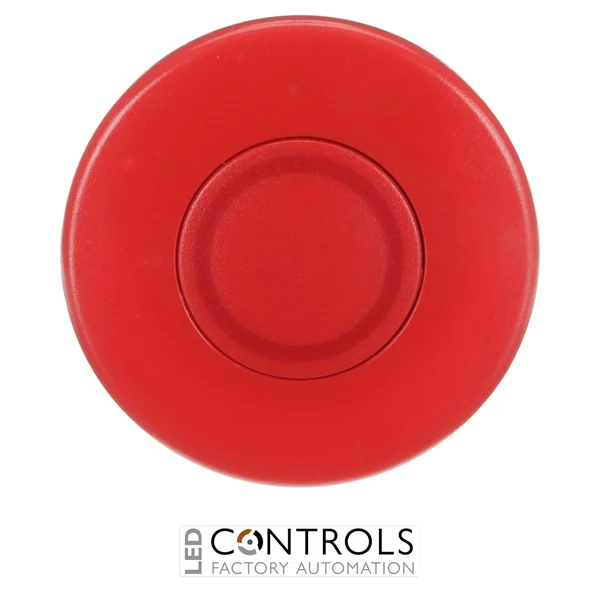

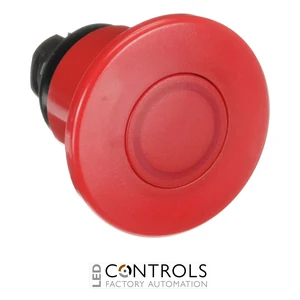

The MPMP4-10R features a prominent 60 mm red mushroom actuator with pull-release reset. Once pressed, the operator remains mechanically latched until deliberately released by pulling the actuator, helping prevent an unintended automatic reset after an emergency-stop command.
This non-illuminated emergency stop incorporates a 10 kΩ resistor and is supplied without a contact block, allowing compatible ABB modular contact elements to be selected for the required control circuit. With IP66 front protection and NEMA Type 4X classification, the MPMP4-10R is engineered for demanding industrial environments. ABB identifies this exact product under order code 1SFA611514R1001.
Key Advantages
- Large 60 mm red mushroom emergency stop actuator for clear identification.
- Pull-release reset mechanism provides deliberate manual resetting after operation.
- Mechanically latched operation maintains the emergency-stop state until reset.
- Integrated 10 kΩ resistor.
- IP66 front protection for demanding industrial environments.
- NEMA Type 4X protection classification.
- Modular construction allows compatible ABB contact blocks to be selected separately.
Key Features
- ABB MPMP4-10R emergency stop.
- 60 mm mushroom actuator.
- Red actuator colour.
- Pull-release reset method.
- Maintained / mechanically latched switching action.
- Integrated 10 kΩ resistor.
- Non-illuminated construction.
- Supplied without contact block.
- IP66 front protection.
- Mechanical durability rated at 0.1 million operations.
Reliable Emergency Stop Control for Industrial Machinery
Emergency stop operators provide personnel with a prominent manual control for stopping machinery when an emergency condition occurs. The ABB MPMP4-10R uses a large red mushroom actuator with a latching mechanism, ensuring that the operator remains actuated after it has been pressed until a deliberate reset is performed.
The pull-release mechanism requires the mushroom actuator to be intentionally pulled before returning to its normal position. Combined with ABB's modular pilot device architecture, this allows machine builders and panel manufacturers to integrate the MPMP4-10R with suitable contact blocks as part of the required machine control or emergency-stop circuit.
Typical Applications
- Industrial machinery emergency-stop controls.
- Production and manufacturing equipment.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- Operator stations and machine control panels.
- OEM automation and industrial safety systems.
