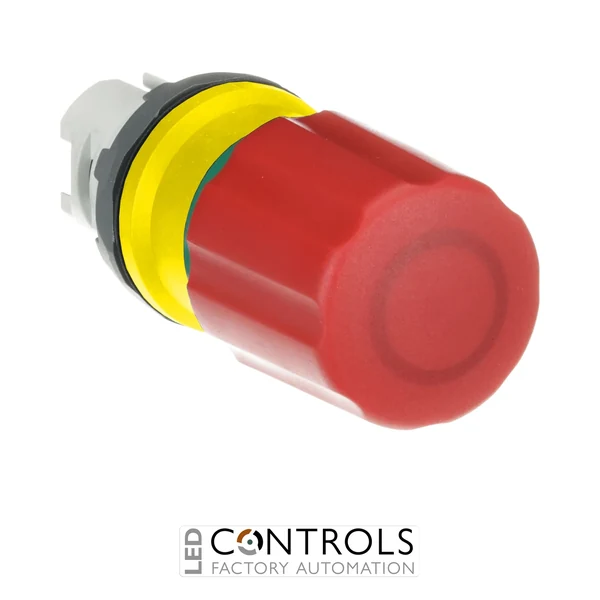

Why Choose the ABB MPEP3-10R Emergency Stop Pushbutton?
The ABB MPEP3-10R is a modular 30 mm emergency stop pushbutton operator designed for safety-related operator control on industrial machinery, production equipment and automation systems. Part of the ABB modular plastic pilot device range, it features a highly visible red mushroom-head actuator with a pull-release mechanism for deliberate resetting after operation.
The MPEP3-10R provides a maintained emergency-stop action. Pressing the mushroom actuator latches the operator in its actuated position, while resetting is achieved by deliberately pulling the actuator. This operating principle provides a clear and intuitive emergency-stop interface for industrial machinery where the stop command must remain mechanically actuated until manually reset.
Designed for use with 22 mm ABB pilot devices, the MPEP3-10R is a non-illuminated operator that can be combined with a suitable holder and contact blocks to create the required emergency-stop assembly. Its robust plastic construction and IP66 protection rating support dependable operation in demanding industrial control environments.
Key Advantages
- Highly visible 30 mm red mushroom emergency-stop actuator.
- Pull-release mechanism provides deliberate manual resetting after actuation.
- Maintained operating action keeps the emergency-stop operator actuated until reset.
- Designed for the standard 22 mm ABB modular pilot-device system.
- IP66 protection rating for demanding industrial environments.
- Modular construction allows suitable ABB holders and contact blocks to be selected for the required safety circuit.
Key Features
- ABB MPEP3 modular emergency stop operator.
- 30 mm mushroom-head actuator.
- Red actuator colour for clear emergency-stop identification.
- Pull release for intentional manual reset.
- Maintained emergency-stop operating action.
- Non-illuminated operator design.
- Robust plastic construction.
- For use with 22 mm pilot devices.
- IP66 protection rating.
- Suitable for ambient operating temperatures from -25 to +70 °C.
- Operator supplied for modular assembly with compatible ABB holders and contact blocks.
Reliable Emergency-Stop Control for Industrial Machinery
Emergency-stop pushbuttons provide operators with a readily identifiable means of initiating a machine stop when an emergency condition occurs. The ABB MPEP3-10R uses a 30 mm red mushroom actuator that remains mechanically latched after being pressed, helping ensure that the emergency-stop command remains actuated until a deliberate reset is performed.
The pull-release mechanism requires the mushroom actuator to be intentionally pulled to reset the operator. As part of ABB's modular pilot-device system, the MPEP3-10R can be combined with a suitable holder and appropriate contact blocks to create an emergency-stop assembly matched to the control and safety requirements of the machine.
Typical Applications
- Industrial machinery emergency-stop stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Packaging and processing machinery.
- Machine-tool control panels.
- Industrial operator stations and control enclosures.
- OEM machinery and automation systems.
