Why Choose the ABB MCBH-11 Contact Blocks with Holder?

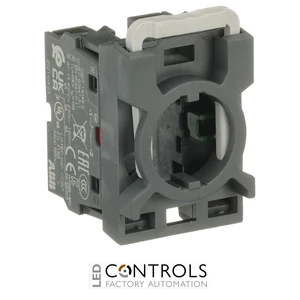

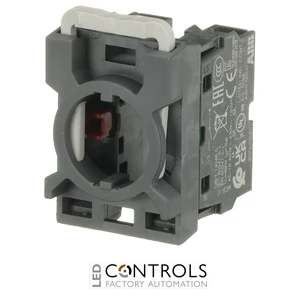

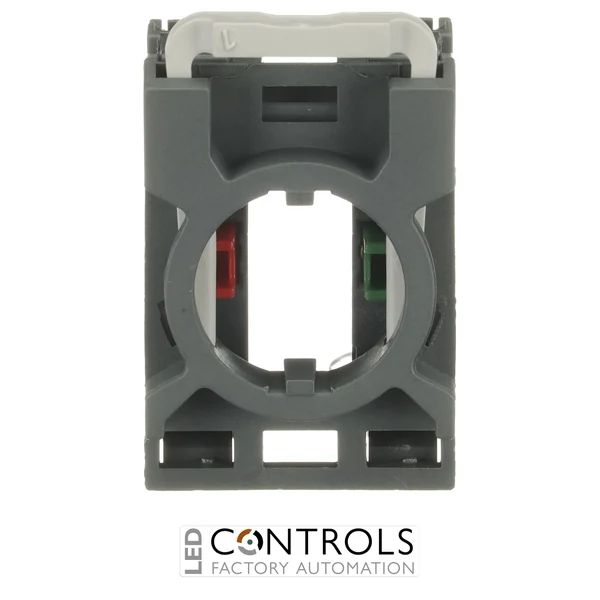

The ABB MCBH-11 is a modular contact block assembly with 3-position holder designed for ABB 22 mm pilot devices. Supplied as a ready-to-install combination, it includes one normally open (1 NO) and one normally closed (1 NC) contact block, providing two complementary contacts for industrial control and signalling circuits.
The MCBH-11 is intended for front mounting behind non-illuminated ABB Modular operators. Its included holder can accommodate up to three contact-block positions, while the supplied 1 NO + 1 NC configuration makes it suitable for applications requiring simultaneous make and break functions from a pushbutton, selector switch or compatible machine-control operator.
ABB's modular construction provides straightforward snap-in assembly with compatible operators and allows contact blocks to be installed or serviced efficiently. The MCBH-11 contact assembly has IP20 auxiliary-terminal protection and is identified by ABB order code 1SFA611605R1111.
Key Advantages
- Supplied with 1 NO + 1 NC contact blocks for complementary switching functions.
- Includes an ABB 3-position contact block holder.
- Designed for front mounting behind compatible non-illuminated operators.
- Part of ABB's modular 22 mm pilot device system.
- Snap-in modular construction supports quick assembly and servicing.
- IP20 auxiliary-terminal protection.
- Suitable for a broad range of ABB pushbuttons, selector switches and machine-control operators.
Key Features
- ABB MCBH-11 contact block assembly.
- 1 NO + 1 NC contact configuration.
- 3-position holder included.
- Contact blocks and holder supplied as one assembly.
- Front mounting arrangement.
- For non-illuminated operators.
- Compatible with ABB Modular 22 mm pilot devices.
- IP20 auxiliary-terminal protection.
- Compact modular construction for industrial control panels.
Flexible Switching for ABB Modular Pilot Devices
The ABB MCBH-11 provides both normally open and normally closed switching functions in one convenient modular assembly. This configuration allows a compatible operator to make one circuit while simultaneously breaking another, making the assembly useful for control, interlocking and status-related functions within industrial machinery and control systems.
The included 3-position holder connects the contact blocks to compatible ABB Modular operators and simplifies panel assembly by eliminating the need to order the holder separately. Its modular snap-in construction also supports efficient installation, replacement and maintenance in industrial control panels.
Typical Applications
- Industrial pushbutton control circuits.
- Selector switch assemblies.
- Machine start and stop controls.
- Control and interlocking circuits.
- Industrial operator stations.
- Automation and OEM control panels.
