Why Choose the ABB MCB-01BG Contact Block?

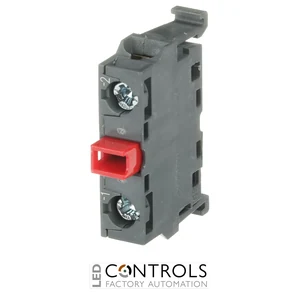

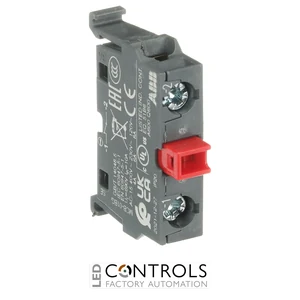

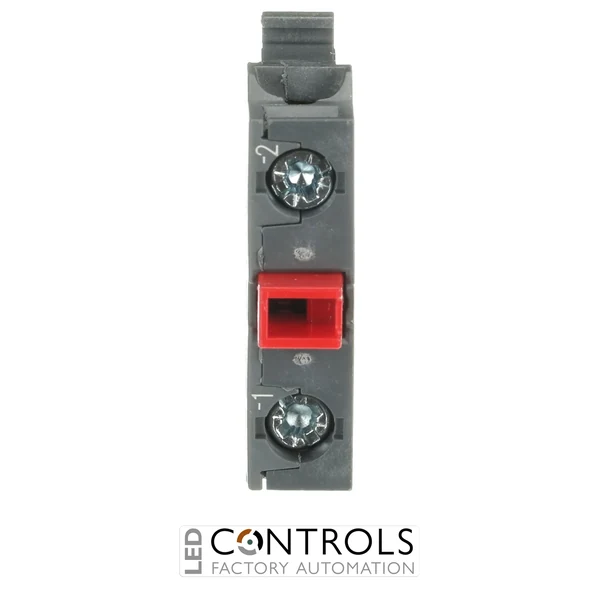

The ABB MCB-01BG is a modular single normally closed (1 NC) contact block with gold-plated contacts designed for industrial pilot-device, signalling and control applications. Part of the ABB Modular pilot device range, it provides dependable switching where a normally closed circuit and reliable low-level contact performance are required.
The MCB-01BG features a 1 NC contact configuration, meaning the electrical circuit is closed in its normal, unactuated state and changes state when the block is mechanically operated. Its gold-plated contact surface makes the contact block particularly suitable for low-level switching and signalling duties where consistent electrical contact is important.
Designed for rear mounting, the MCB-01BG combines compact dimensions with industrial electrical ratings including a 690 V rated insulation voltage and 6 kV rated impulse withstand voltage. IP20 terminal protection, a wide operating temperature range and a mechanical durability of 10 million operations support dependable service in industrial machinery and automation installations.
Key Advantages
- Single normally closed (1 NC) contact for industrial control and signalling circuits.
- Gold-plated contact surface supports dependable low-level signal switching.
- Rear-mounted design for compatible ABB pilot-device installations.
- 690 V rated insulation voltage for industrial control applications.
- 6 kV rated impulse withstand voltage.
- IP20 terminal protection for the connection area.
- Mechanical durability of 10 million operations for long-term industrial service.
Key Features
- ABB MCB modular contact block.
- 1 NC contact configuration.
- Gold-plated contact surface.
- Single contact block construction.
- Rear mounting.
- Non-illuminated accessory.
- 690 V rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- 50/60 Hz rated frequency.
- IP20 terminal protection.
- Pollution degree 3.
- Mechanical durability of 10 million operations.
- Ambient operating temperature range of -25 to +70 °C.
Reliable Gold-Plated Normally Closed Switching
Contact blocks convert mechanical movement from an associated control device into electrical switching within machinery and automation circuits. The ABB MCB-01BG provides one normally closed contact, maintaining electrical continuity in its normal state and changing state when the block is mechanically actuated.
The gold-plated contact surface supports dependable switching in low-level control and signalling circuits, while the compact rear-mounted format helps minimise panel-space requirements. With industrial insulation ratings, IP20 terminal protection and a mechanical durability of 10 million operations, the MCB-01BG is designed for reliable integration into industrial control systems.
Typical Applications
- Industrial pilot-device control circuits.
- Low-level signalling and monitoring circuits.
- Machine-control panels.
- Industrial operator stations.
- Interlocking and control logic circuits.
- Production and packaging machinery.
- Material handling and conveyor controls.
- OEM automation and machine-building systems.
