Why Choose the ABB MLBL-00G Lamp Block?

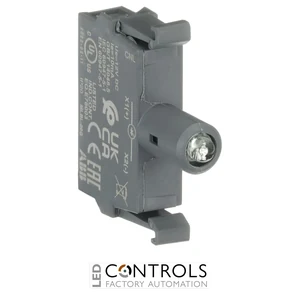

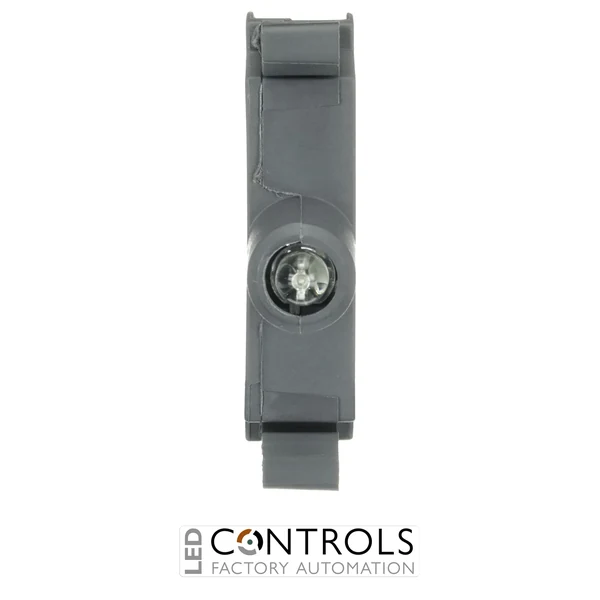

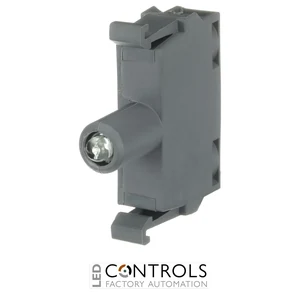

The ABB MLBL-00G is a compact green LED lamp block designed for illuminated operators within ABB's modular 22 mm pilot device range. Supplied under ABB order code 1SFA611621R1002, it provides a reliable integrated light source for compatible pushbuttons, selector switches and other illuminated industrial control devices.
The MLBL-00G incorporates a green LED designed for a rated supply of 12 V DC. The LED has a rated current of 12 mA, a wavelength of 520 nm and luminance of 1500 mcd, providing a bright green visual indication through a compatible ABB operator or lens.
Designed for front mounting, the MLBL-00G uses screw-clamp terminals for straightforward industrial wiring. Its terminals provide IP20 protection, while an operating temperature range of -25 to +70 °C supports installation in industrial machinery, automation equipment and control-panel applications.
Key Advantages
- Integrated green LED light source for clear visual status indication.
- Designed specifically for 12 V DC control circuits.
- 12 mA rated current provides efficient LED illumination.
- High 1500 mcd luminance provides a clear green indication.
- Front-mounted modular construction simplifies integration with compatible ABB operators.
- Screw-clamp terminals provide secure and convenient control-panel wiring.
Key Features
- ABB MLBL modular LED lamp block.
- Green LED illumination.
- 12 V DC rated operational voltage.
- 12 mA rated current.
- 520 nm LED wavelength.
- 1500 mcd luminance.
- Integrated LED light source.
- Front mounting.
- Screw-clamp terminals.
- Compatible with ABB's modular 22 mm pilot device range.
Green LED Indication for ABB Modular Pilot Devices
LED lamp blocks provide the internal light source behind compatible illuminated pilot device operators, allowing machine states, commands and process conditions to be communicated visually. Green illumination is commonly used for positive status indications such as running, ready or normal conditions, depending on the signalling conventions adopted for the particular machine or installation.
The ABB MLBL-00G combines a 12 V DC integrated LED with ABB's front-mounted modular construction and screw-clamp connection system. It can be paired with compatible ABB illuminated pushbuttons, selector switches and other modular operators, providing a compact illumination solution for machinery and industrial automation panels.
Typical Applications
- Illuminated industrial pushbuttons.
- Machine running and ready indication.
- Automation and process control panels.
- Production and manufacturing equipment.
- Operator stations and control consoles.
- Conveyor and material handling controls.
- OEM machinery and electrical control assemblies.
