Why Choose the ABB MLBL-06G Lamp Block?

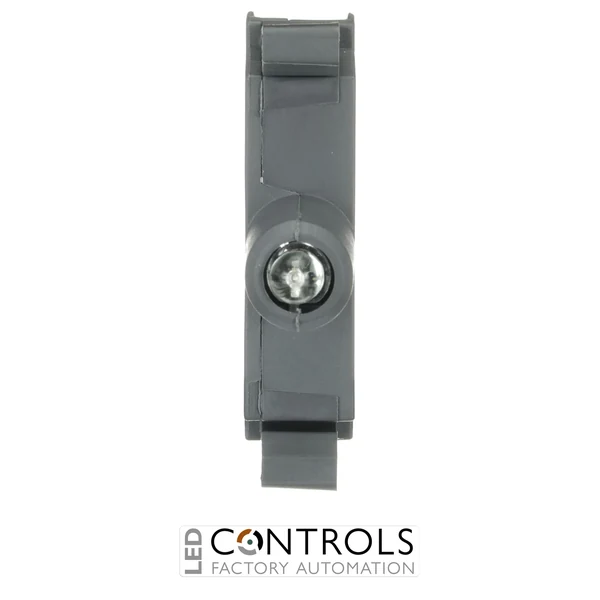

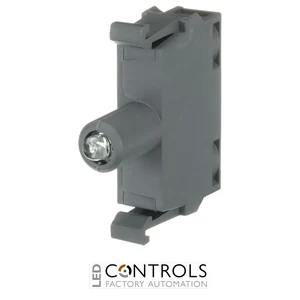

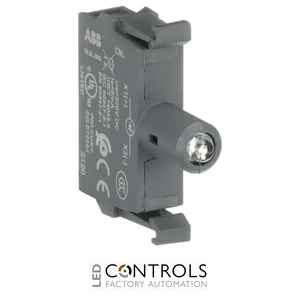

The ABB MLBL-06G is a modular green LED lamp block designed for illuminated ABB pilot devices used in industrial control, indication and signalling applications. Part of ABB's modular plastic pilot-device range, it incorporates the LED light source into a compact front-mounted block for integration with compatible illuminated operators and indicator heads.
Designed specifically for 220 V DC operation, the MLBL-06G provides green illumination with a rated current of 8 mA. Its green LED has a nominal wavelength of 520 nm and luminance of approximately 110 mcd, providing a clearly identifiable visual signal for machine-defined operating, ready, enabled or other status functions.
The integrated LED eliminates the need for a separate replaceable lamp, simplifying the construction of illuminated control devices. With IP20 terminal protection, modular front mounting and a compact design, the MLBL-06G provides a practical lighting component for machinery control panels, operator stations and industrial automation systems using 220 V DC control supplies.
Key Advantages
- Integrated green LED provides a complete modular lamp-block solution.
- Purpose-designed for 220 V DC control and indication circuits.
- Low rated current of 8 mA.
- Green LED provides approximately 110 mcd luminance.
- Nominal 520 nm wavelength provides clear green visual indication.
- IP20 terminal protection supports industrial control-panel installation.
- Designed for compatible ABB modular illuminated pilot-device assemblies.
Key Features
- ABB MLBL modular LED lamp block.
- Green integrated LED light source.
- 220 V DC rated operating voltage.
- 8 mA rated current.
- Nominal LED wavelength of 520 nm.
- Approximate luminance of 110 mcd.
- Illuminated accessory configuration.
- Front-mounted LED block construction.
- IP20 terminal protection.
- Designed for ABB modular plastic pilot devices.
- Compact construction for industrial control-panel applications.
- Approximate unit weight of 0.012 kg.
Reliable Green LED Indication for Industrial Controls
Visual indication allows machine and process conditions to be communicated quickly to operators. The ABB MLBL-06G provides an integrated green LED for compatible illuminated pilot devices, enabling a clearly identifiable green signal to be incorporated into industrial operator interfaces and control panels.
The MLBL-06G is specifically rated for 220 V DC and draws approximately 8 mA. Its 520 nm green LED and approximately 110 mcd luminance make it suitable for machine-defined indication functions, while ABB's modular pilot-device architecture supports convenient integration with compatible illuminated operators and indicator heads.
Typical Applications
- Industrial illuminated pushbutton assemblies.
- Green pilot-light and status-indication assemblies.
- Machine operating and ready-status indication.
- Machine-control panels.
- Industrial operator stations.
- Production and packaging machinery.
- Conveyor and material handling controls.
- Process-control indication panels.
- OEM machinery and automation systems.
