Why Choose the ABB MLBL-06W Lamp Block?

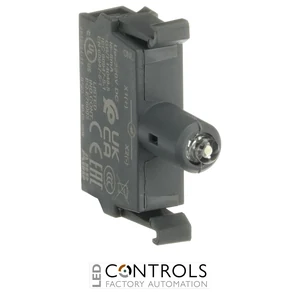

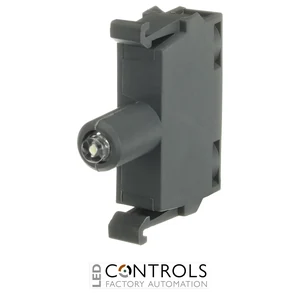

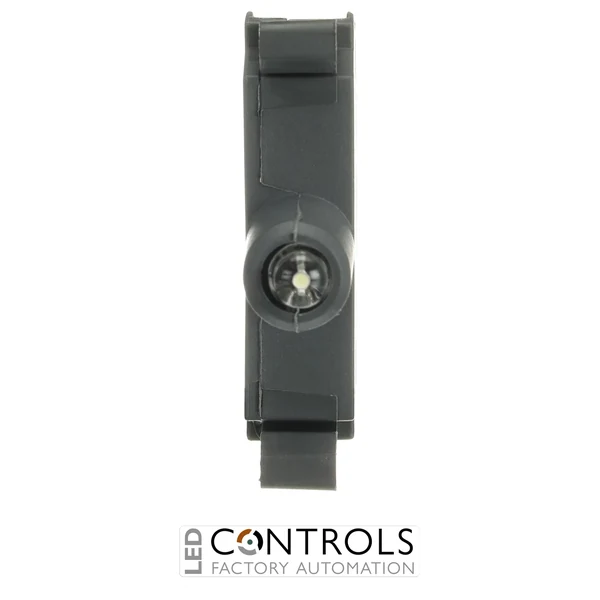

The ABB MLBL-06W is a modular white LED lamp block designed for illuminated operators within ABB's 22 mm modular pilot device range. Supplied under ABB order code 1SFA611621R1065, it provides an integrated light source for compatible illuminated pushbuttons, selector switches and other industrial control devices.
The MLBL-06W operates from a 220 V DC supply and incorporates an efficient white LED drawing a rated current of 8 mA. Its white LED provides approximately 600 mcd luminance, delivering a clear neutral indication for machine status, process information and general signalling functions.
Designed for front mounting within ABB's modular pilot device system, the MLBL-06W provides a compact illumination solution for machinery and industrial control panels. At approximately 0.012 kg, the block adds minimal weight while allowing compatible ABB illuminated operators to be configured for higher-voltage DC control systems.
Key Advantages
- Integrated white LED light source for clear visual indication.
- Designed specifically for 220 V DC industrial control circuits.
- Low 8 mA rated current supports efficient LED illumination.
- 600 mcd luminance provides a clear white indication.
- Front-mounted modular construction simplifies integration with compatible ABB operators.
- Compact and lightweight design is well suited to densely populated industrial control panels.
Key Features
- ABB MLBL modular LED lamp block.
- White LED illumination.
- 220 V DC rated operational voltage.
- 8 mA rated current.
- 600 mcd luminance.
- Integrated LED light source.
- Front mounting.
- Designed for DC operation.
- Compact 0.012 kg construction.
- Compatible with ABB's modular 22 mm pilot device system.
White LED Indication for ABB Modular Pilot Devices
LED lamp blocks provide the internal illumination behind compatible pilot device operators, allowing machine states, commands and process conditions to be communicated visually. White illumination provides a versatile neutral signal that can be used for general status, information or confirmation functions according to the signalling conventions adopted for the machinery or installation.
The ABB MLBL-06W combines a 220 V DC integrated white LED with ABB's modular front-mounted pilot device architecture. Because it is a DC lamp block, correct polarity should be observed during installation, with ABB identifying the terminals as X1 (+) and X2 (-). The unit can be paired with compatible illuminated ABB operators to provide a compact indication solution for industrial control systems.
Typical Applications
- Illuminated industrial pushbuttons.
- Machine status and information indication.
- 220 V DC industrial control systems.
- Automation and process control panels.
- Production and manufacturing equipment.
- Operator stations and control consoles.
- OEM machinery and electrical control assemblies.
