Why Choose the ABB MLBL-09R Lamp Block?

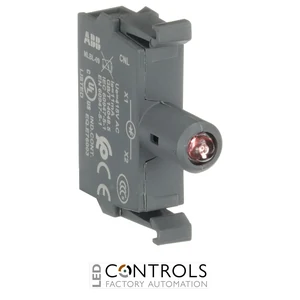

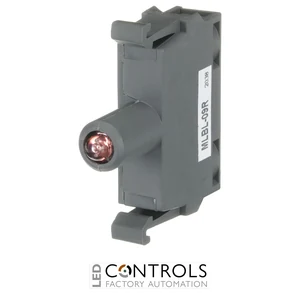

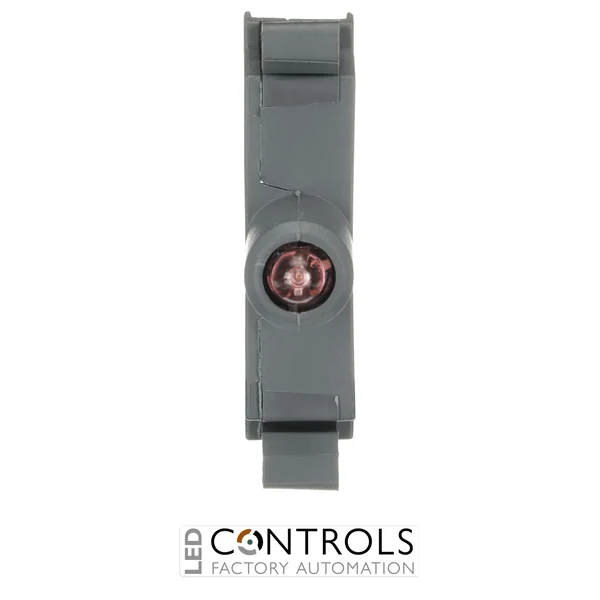

The ABB MLBL-09R is a modular red LED lamp block designed for illuminated ABB pilot devices used in industrial control, indication and signalling applications. Part of ABB's 22 mm modular pilot-device range, it provides an integrated LED light source for use with compatible illuminated pushbuttons, selector switches and pilot-light heads.
Designed for 415 V operation, the MLBL-09R enables red visual indication to be incorporated directly into compatible ABB operator interfaces. Its integrated LED construction eliminates the need for a separate replaceable lamp and provides a compact solution for high-voltage indication circuits in machinery and control-panel applications.
The red illumination is suitable for machine-defined stop, fault, alarm and other attention-demanding status indications, with the precise meaning determined by the control system and applicable signalling conventions. The modular construction supports efficient assembly and replacement within compatible ABB pilot-device installations.
Key Advantages
- Integrated red LED provides a complete modular lamp-block solution.
- Designed for 415 V indication applications.
- Red illumination provides a clearly identifiable visual signal.
- Integrated LED eliminates the need for a separate replaceable lamp.
- Designed for compatible ABB 22 mm modular pilot devices.
- Compact modular construction supports efficient panel assembly and maintenance.
- Suitable for industrial machinery, automation and control-panel applications.
Key Features
- ABB MLBL modular lamp block.
- Integrated LED light source.
- Red illumination.
- 415 V voltage rating.
- Designed for illuminated ABB modular pilot-device assemblies.
- Part of ABB's 22 mm pilot-device system.
- Solid-state lighting eliminates a separate replaceable lamp.
- Suitable for industrial visual indication and signalling functions.
- Compact construction for machinery and control-panel installations.
Reliable Red LED Indication for Industrial Controls
Visual indication allows operating states, alarms and machine conditions to be communicated quickly to personnel. The ABB MLBL-09R provides an integrated red LED for compatible illuminated pilot devices, allowing a clear red visual signal to be incorporated into industrial operator interfaces and control panels.
With its 415 V rating and modular construction, the MLBL-09R is designed for compatible ABB pilot-device installations where this voltage is available for the indication circuit. The integrated LED simplifies component selection and provides a purpose-designed lighting element for illuminated operator controls and status indicators.
Typical Applications
- Industrial illuminated pushbutton assemblies.
- Red pilot-light and status-indication assemblies.
- Machine-defined fault and alarm indication.
- Machine-control panels.
- Industrial operator stations.
- Production and packaging machinery.
- Conveyor and material handling controls.
- Process-control indication panels.
- OEM machinery and automation systems.
