Why Choose the ABB MLBL-07BW Lamp Block?

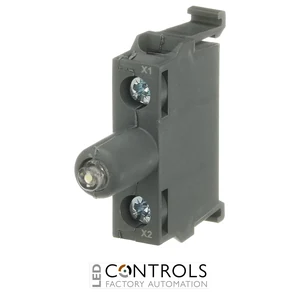

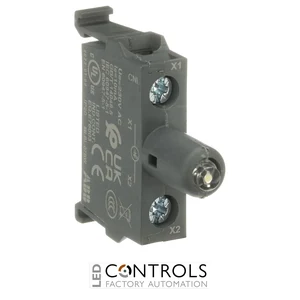

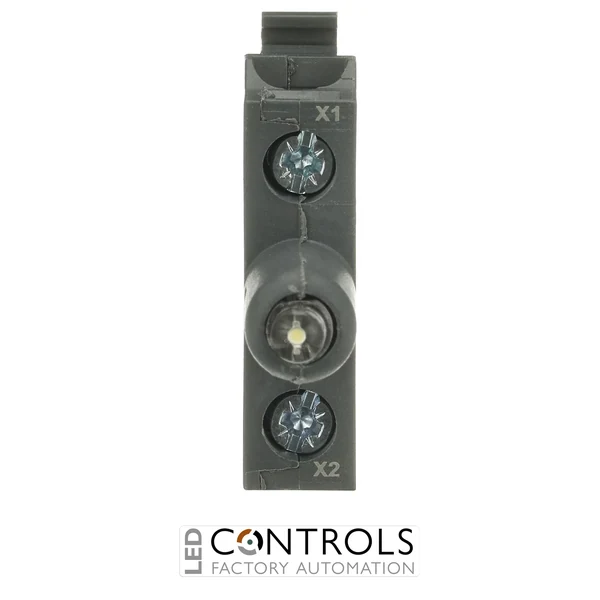

The ABB MLBL-07BW is a compact and reliable white LED lamp block designed for illuminated indication within ABB modular pilot device assemblies. Part of ABB's established pilot device range, it provides clear visual signalling for industrial machinery, control panels and operator interfaces.
The MLBL-07BW incorporates an integrated white LED and is designed for a 230 V AC rated supply. Its rear-mounting configuration is intended for use in compatible MEP plastic enclosures or on DIN rail, providing flexible installation within industrial control and signalling systems.
With a rated current of approximately 8.2–10 mA, white illumination and a luminance of 600 mcd, the MLBL-07BW provides efficient visual status indication in a compact modular format. Screw-clamp connections support secure electrical termination in industrial installations.
Key Advantages
- Integrated white LED for clear machine and process status indication.
- 230 V AC rated voltage for industrial control applications.
- Bright 600 mcd luminance for effective visual signalling.
- Compact modular construction for ABB pilot device assemblies.
- Designed for rear mounting in compatible MEP plastic enclosures or on DIN rail.
- Screw-clamp connection provides secure electrical termination.
Key Features
- ABB MLBL modular lamp block.
- White integrated LED.
- 230 V AC rated voltage.
- Rated current approximately 8.2–10 mA.
- 600 mcd luminance.
- White chromaticity coordinates approximately x = 0.31, y = 0.32.
- Screw connection for the auxiliary circuit.
- Rear mounting for compatible ABB pilot device installations.
- Suitable for MEP plastic enclosure or DIN-rail mounting.
- Compact weight of approximately 0.012 kg.
Reliable Visual Indication for Industrial Control Systems
LED lamp blocks such as the ABB MLBL-07BW provide illuminated status feedback within industrial operator interfaces, helping operators identify machine and process conditions quickly. The integrated white LED provides a clear visual signal while the compact rear-mounted construction supports integration into compatible ABB pilot device and enclosure assemblies.
The MLBL-07BW is specifically configured for a 230 V AC supply and can be installed in compatible MEP plastic enclosures or on DIN rail. Its integrated LED, screw connection and modular construction make it a practical signalling component for industrial machinery, automation panels and operator control systems.
Typical Applications
- Industrial machinery control panels.
- Operator control stations and interfaces.
- Machine status and process indication.
- Manufacturing and production equipment.
- Automation and control cabinets.
- MEP plastic enclosure installations.
- DIN-rail-mounted industrial signalling systems.
