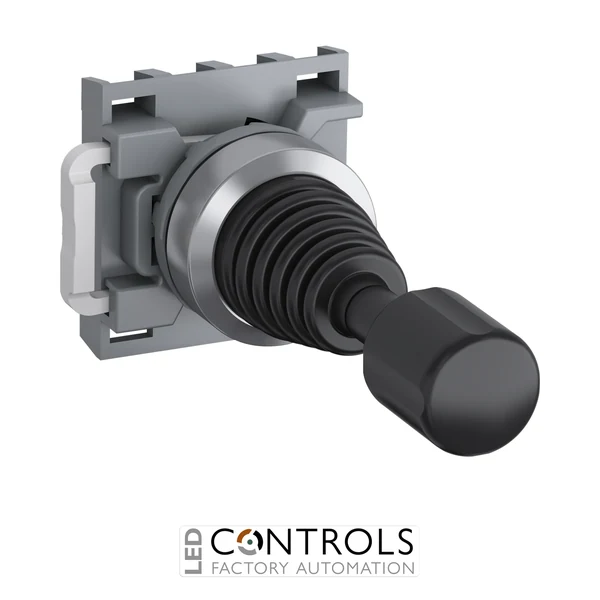

Why Choose the ABB MJS12-60B Joystick?
The ABB MJS12-60B is a robust 4-position momentary joystick with latching function, designed for directional machine control and industrial operator-command applications. Identified by ABB order code 1SFA611712R6006, it combines four actuation directions with spring-return operation and a latching function for versatile machinery control.
Part of ABB's modular pilot-device range, the MJS12-60B features a black, non-illuminated joystick actuator with a durable metal bezel. It is designed for standard 22 mm centre mounting and provides a compact operator interface for control panels, consoles and industrial machinery.
The joystick provides four actuation directions, automatic retraction to the 0-position and locking in the 0-position. With front protection ratings including IP66, IP67 and IP69K and a mechanical durability of approximately 0.5 million operations, it is well suited to demanding industrial environments.
Key Advantages
- 4-position momentary operation for intuitive multidirectional machine control.
- Spring-return operation automatically returns the joystick to its 0-position.
- Latching function with locking in the 0-position.
- Standard 22 mm centre mounting for industrial pilot-device installations.
- Robust metal front ring and black joystick actuator.
- IP66, IP67 and IP69K front protection for demanding environments.
- Genuine ABB pilot-device component with order code 1SFA611712R6006.
Key Features
- ABB MJS12 modular joystick operator.
- Four actuation directions.
- Momentary / spring-return function.
- Latching function.
- Automatic retraction to the 0-position.
- Locking in the 0-position.
- Black actuator.
- Non-illuminated design.
- Metal bezel/front ring.
- Joystick length of approximately 71 mm.
- Mechanical durability of approximately 0.5 million operations.
Spring-Return Directional Control for Industrial Machinery
Momentary industrial joysticks combine several directional commands within one compact operator device. The ABB MJS12-60B provides four actuation directions and automatically returns to its 0-position when released, making it suitable for machine functions that should remain commanded only while the operator deliberately actuates the joystick.
Its latching functionality, rugged metal front ring and high ingress protection support reliable operation in demanding industrial environments. The MJS12-60B therefore provides an intuitive interface for machinery where operators require direct and clearly controlled multidirectional movement commands.
Typical Applications
- Industrial machinery and machine tools.
- Material-handling and conveying equipment.
- Hoisting and positioning systems.
- Operator control panels and consoles.
- Production and processing machinery.
- Factory automation and directional-control systems.
