Why Choose the ABB MEP3-1004 Modular Enclosure?
The ABB MEP3-1004 is a complete three-position modular control station designed for industrial machinery, control systems and operator interfaces. Part of the ABB modular pilot device range, this assembled plastic enclosure combines three spring-return pushbuttons to provide dedicated Start (I), Stop (O) and Start (II) control functions.

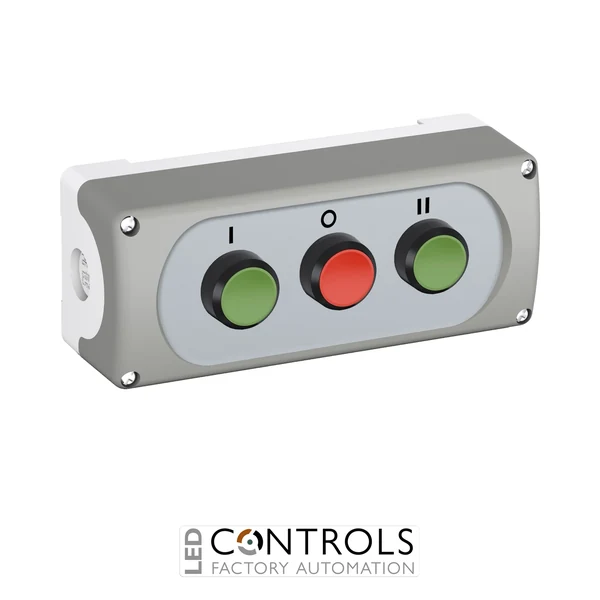

The station is configured with a green Start (I) pushbutton with 1 NO contact on the left, a red Stop (O) pushbutton with 1 NC contact in the centre and a second green Start (II) pushbutton with 1 NO contact on the right. This arrangement provides an intuitive operator interface for machinery requiring two separate start commands together with a central stop function.
Constructed from durable plastic with a light grey base and dark grey cover, the MEP3-1004 provides IP66 enclosure protection for dependable operation in demanding industrial environments. Its surface-mounted format provides a practical standalone control station where panel-mounted operators are not appropriate.
Key Advantages
- Complete three-position modular control station for industrial applications.
- Dedicated Start (I) / Stop (O) / Start (II) operating arrangement.
- Two green spring-return start pushbuttons with 1 NO contact each.
- Central red spring-return stop pushbutton with 1 NC contact.
- Durable plastic enclosure with IP66 protection.
- Clear colour-coded controls simplify machine operation.
- Surface-mounted design suitable for machinery and standalone operator stations.
Key Features
- ABB modular pilot device control station.
- Three command positions.
- Left operator: green Start (I) spring-return pushbutton.
- Centre operator: red Stop (O) spring-return pushbutton.
- Right operator: green Start (II) spring-return pushbutton.
- Contact configuration: 2 NO + 1 NC.
- Plastic housing with light grey base and dark grey cover.
- IP66 degree of protection.
- Designed for industrial control and signalling applications.
Practical Start and Stop Control for Industrial Machinery
The ABB MEP3-1004 provides a clearly arranged operator interface for applications requiring two independent start commands and a common stop command. Its two normally open start contacts and normally closed stop contact make the station suitable for integration into conventional industrial control circuits.
The robust plastic housing protects the installed pilot devices while allowing the complete station to be mounted directly onto machinery, walls or other suitable surfaces. The colour-coded green and red pushbuttons give operators immediate visual identification of the available control functions.
Typical Applications
- Industrial machinery control stations.
- Motor and process control systems.
- Conveyor and material handling equipment.
- Manufacturing and production machinery.
- Remote operator stations.
- OEM machinery and automation equipment.
