Why Choose the ABB MA1-8137 Legend Plate Holder?

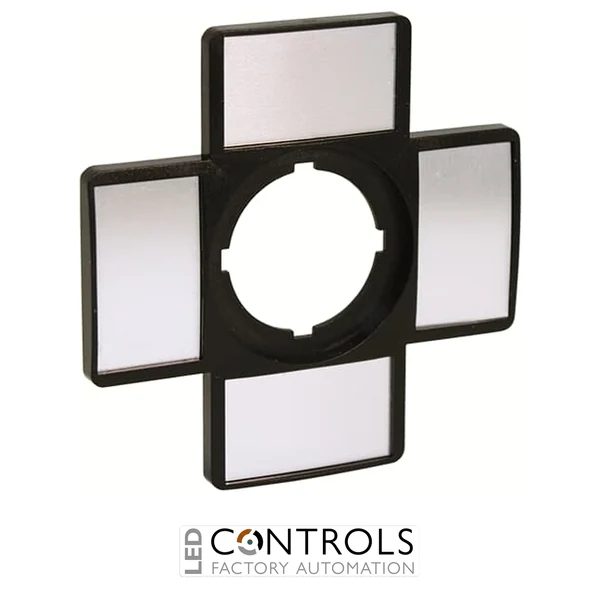

The ABB MA1-8137 is a dedicated 4-position joystick legend plate holder designed for use with compatible ABB modular pilot devices. It provides a practical mounting point for directional legend plates around a four-position joystick, helping create a clear and intuitive operator interface for industrial machinery and automation equipment.
As part of ABB's MA1 modular pilot device accessory range, the MA1-8137 is specifically intended for four-position joystick applications. It allows directional identification to be arranged around the joystick operator so that machine functions can be clearly marked for operators.
Identified by ABB order code 1SFA611920R8137, the MA1-8137 has overall dimensions of approximately 1 × 65 × 65 mm and a weight of approximately 0.003 kg. Its purpose-built design makes it a useful accessory for machinery control panels, operator stations and other installations using compatible ABB four-position joysticks.
Key Advantages
- Purpose-designed legend plate holder for 4-position joysticks.
- Supports clear identification of multiple joystick directions and functions.
- Designed for compatible ABB modular pilot device assemblies.
- Helps create an organised and intuitive industrial operator interface.
- Compact approximately 65 × 65 mm format around the joystick operator.
- Lightweight construction for straightforward integration into control panels.
Key Features
- ABB MA1-8137 legend plate holder.
- Designed specifically for 4-position joystick applications.
- Part of the ABB MA1 modular pilot device accessory range.
- Supports compatible directional legend plates.
- Designed for industrial operator and machine-control interfaces.
- Approximate dimensions of 1 × 65 × 65 mm.
- Operating ambient temperature range of -25 to +70 °C.
- Individual weight approximately 0.003 kg.
Clear Directional Identification for Industrial Joysticks
Four-position industrial joysticks can control several movement directions or machine functions from a single operator. A dedicated legend plate holder provides space around the joystick for directional markings, helping operators identify the assigned functions quickly and reducing ambiguity during machine operation.
The ABB MA1-8137 is specifically designed as the legend plate holder for compatible four-position ABB joysticks. When used with suitable legend plates, it supports clear up, down, left and right function identification within machinery control panels and industrial operator stations.
Typical Applications
- Four-position industrial joystick assemblies.
- Machinery directional control panels.
- Crane and material-handling operator stations.
- Hoist and positioning controls.
- Manufacturing and production equipment.
- Automation operator interfaces.
- OEM machinery and machine-building applications.
