Why Choose the ABB MA1-8138 Legend Plate Holder?

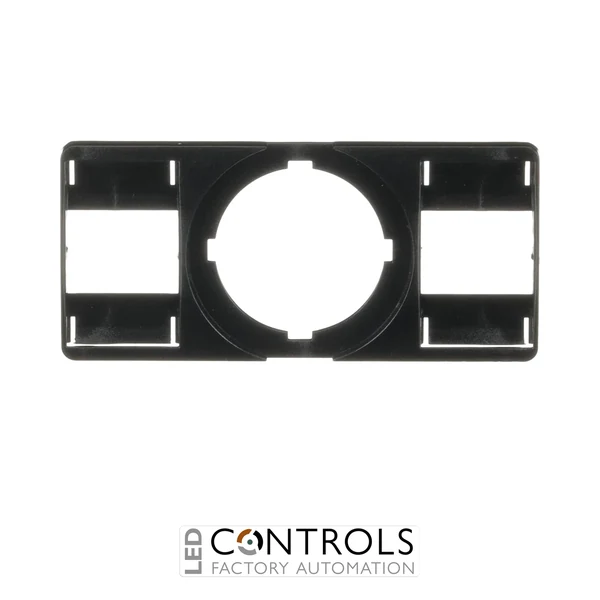

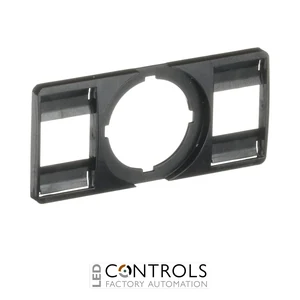

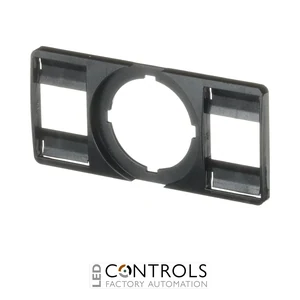

The ABB MA1-8138 is a 2-position legend plate holder designed as an accessory for compatible ABB pilot devices. Identified by ABB order code 1SFA611920R8138, it provides a practical mounting point for identification inserts around joystick and control operators.
The MA1-8138 has a rectangular configuration and is designed to accept 27 × 15 mm legend inserts, which are supplied separately. This allows machine builders and panel designers to add clear function or directional identification to compatible ABB operator devices.
Designed for ABB's modular pilot-device system, the MA1-8138 is particularly suited to 2-position joystick applications. Its compact construction makes it useful for machinery control panels, operator stations and industrial consoles where clear device identification contributes to an intuitive operator interface.
Key Advantages
- Purpose-designed 2-position legend plate holder for ABB pilot devices.
- Accepts compatible 27 × 15 mm legend inserts.
- Rectangular configuration for neat operator-panel identification.
- Suitable for compatible ABB joystick and pilot-device applications.
- Helps provide clear identification of operator functions and directions.
- Compact mechanical accessory requiring no electrical connection.
- Genuine ABB component with order code 1SFA611920R8138.
Key Features
- ABB MA1 pilot-device accessory.
- 2-position legend plate holder.
- Rectangular shape.
- Suitable for 27 × 15 mm inserts.
- Legend inserts are not included.
- Designed for compatible ABB modular pilot devices.
- Suitable for joystick operator identification.
- Manufacturer package quantity of 10 pieces.
Clear Identification for Industrial Operator Controls
Legend plate holders provide a convenient way to identify the functions associated with industrial pilot devices. By positioning suitable legend inserts around the operator, machine builders can give personnel clear visual guidance about the direction, mode or function associated with a control.
The ABB MA1-8138 is specifically configured for 2-position applications and accepts replaceable 27 × 15 mm inserts. This makes it a practical accessory for compatible joystick and control-device installations where clear, professional labelling is required.
Typical Applications
- Industrial joystick identification.
- Machine control panels.
- Operator stations and control consoles.
- Material-handling equipment controls.
- Factory automation systems.
- Compatible ABB 2-position pilot-device installations.
