Why Choose the ABB KA1-8005 Light Diffusing Fresnel Lens?

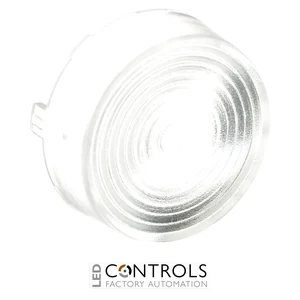

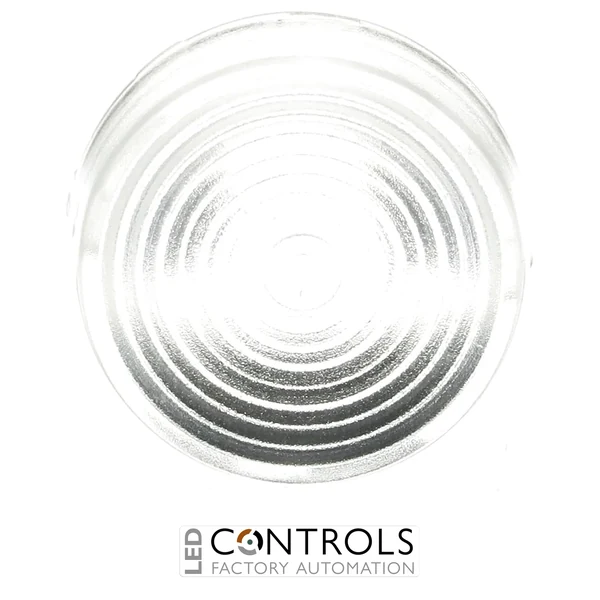

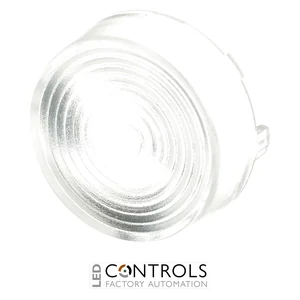

The ABB KA1-8005 is a clear light diffusing Fresnel lens designed as an accessory for ABB industrial pilot lights. Supplied under ABB order code 1SFA616920R8005 and described as CAP FRESNEL#KA1-8005, it provides effective light diffusion across the visible face of compatible signalling devices.
The KA1-8005 is part of ABB's modular plastic pilot device range and is suitable for use with ML1, CL and CL2 pilot lights. Its clear construction distributes the light produced by the signalling device, helping provide uniform and readily visible status indication on industrial control panels and operator stations.
With compact dimensions of approximately 45 × 45 × 25 mm and an operating temperature range of -25 to +70 °C, the KA1-8005 is suited to industrial control and signalling applications. Its direct-fit accessory design also makes it practical for maintenance and replacement of compatible ABB pilot-light assemblies.
Key Advantages
- Purpose-designed light diffusing Fresnel lens for ABB pilot lights.
- Clear lens provides effective distribution of light across the signalling surface.
- Compatible with ABB ML1, CL and CL2 pilot-light devices.
- Part of ABB's modular plastic pilot device range.
- Compact construction for straightforward integration into control equipment.
- Suitable for industrial signalling, maintenance and replacement applications.
Key Features
- ABB KA1-8005 Fresnel cap / light diffusing lens.
- Clear lens construction.
- Designed to diffuse pilot-light illumination.
- Compatible with ML1, CL and CL2.
- Accessory for industrial operator and pilot-light devices.
- Part of the ABB modular range.
- Operating temperature range of -25 to +70 °C.
- ABB order code 1SFA616920R8005.
Effective Light Diffusion for Industrial Signalling
Light diffusing lenses help distribute illumination across the visible surface of a pilot light, providing a clear indication of machine or process status to operators. The ABB KA1-8005 is designed specifically for compatible ABB signalling devices and provides the optical interface required for effective visual indication.
Its compatibility with ABB ML1, CL and CL2 pilot lights makes the KA1-8005 a practical component for machine builders, panel manufacturers and maintenance engineers working with ABB industrial signalling equipment.
Typical Applications
- Industrial pilot lights and status indicators.
- Machine control panels.
- Operator control stations.
- Manufacturing and production equipment.
- Automation and process control systems.
- Maintenance and replacement of compatible ABB signalling devices.
