Why Choose the ABB CP1-10R-10 Compact Pushbutton?

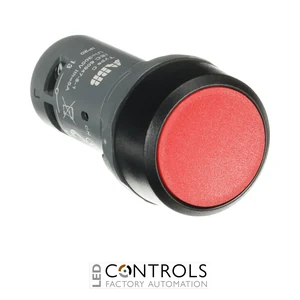

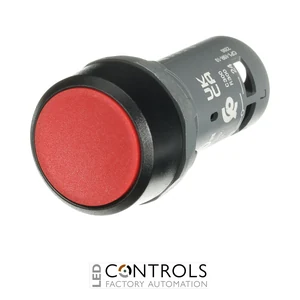

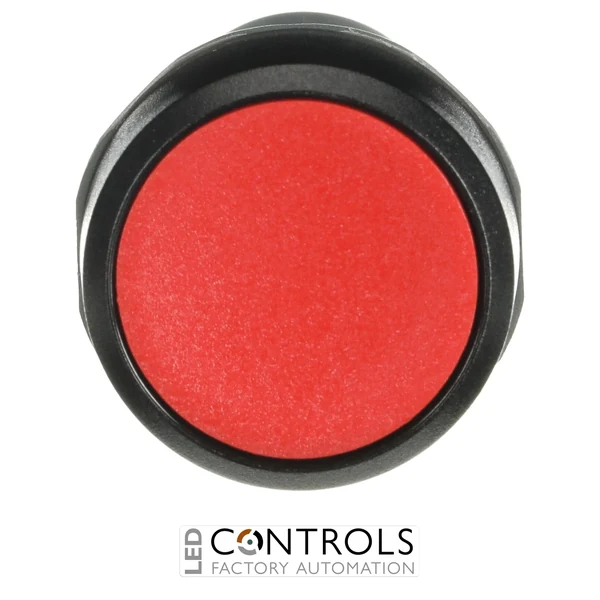

The ABB CP1-10R-10 is a compact 22 mm momentary pushbutton designed for operator control in industrial machinery, control panels and automation systems. Part of the ABB CP1 Compact pilot device range, this model combines a red flush actuator with a black plastic bezel and an integrated normally open contact.
The CP1-10R-10 is a non-illuminated pushbutton with momentary operation, meaning its contact changes state while the button is pressed and returns when released. Its integrated 1 NO contact makes it suitable for control commands, signalling circuits and other applications requiring a simple normally open switching function.
Designed around the standard 22 mm mounting format, the CP1-10R-10 provides a compact installation footprint for control panels and operator interfaces. The front of the installed device provides IP66 protection, helping it withstand demanding industrial environments where dust and water ingress protection are important.
Key Advantages
- Compact 22 mm industrial pushbutton for control and automation applications.
- Red flush actuator for clear operator identification.
- Momentary operation for control commands and signalling functions.
- Integrated 1 NO contact.
- Non-illuminated design for straightforward control applications.
- IP66 front protection when installed correctly.
- Compact one-piece design simplifies panel installation.
Key Features
- ABB CP1 Compact pushbutton range.
- 22 mm mounting format.
- Red actuator.
- Flush pushbutton actuator.
- Momentary switching action.
- 1 normally open (1 NO) contact.
- Non-illuminated operator.
- Black plastic bezel.
- Compact depth for space-conscious control-panel designs.
Compact Operator Control for Industrial Machinery
Pushbuttons provide a simple interface between machine operators and electrical control systems. A momentary normally open pushbutton closes its control contact when operated and returns to its normal state after release, making this configuration useful for commands such as starting a process, acknowledging a condition or initiating an automated machine function.
The ABB CP1 Compact range combines the operator and contact functionality in a space-efficient assembly for 22 mm control-panel openings. The CP1-10R-10 provides a readily identifiable red flush operator with robust front protection for industrial control stations and machinery interfaces.
Typical Applications
- Industrial machinery control panels.
- Operator control stations.
- Manufacturing and production equipment.
- Automation and PLC control circuits.
- Motor and process control panels.
- Material handling and conveyor systems.
