Why Choose the ABB CP1-10G-10 Compact Pushbutton?

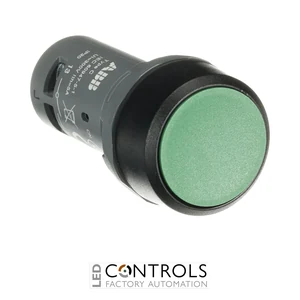

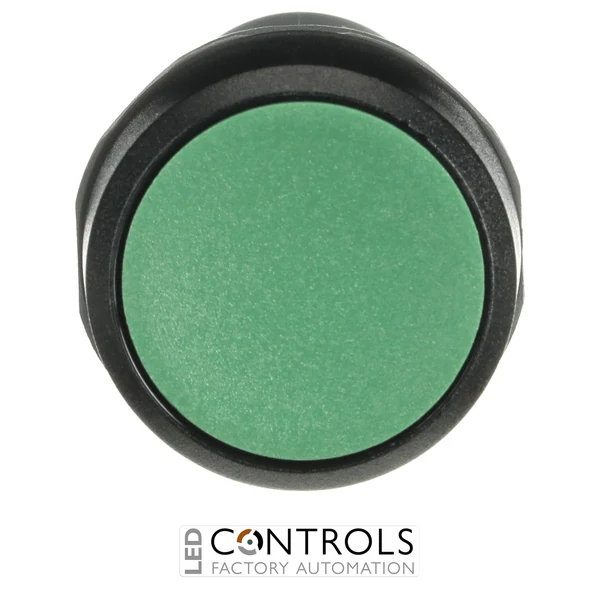

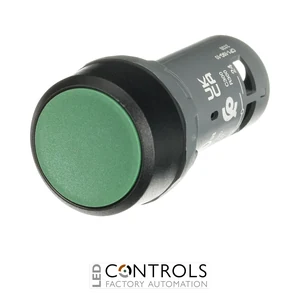

The ABB CP1-10G-10 is a compact 22 mm momentary pushbutton designed for operator control in industrial machinery, control panels and automation systems. Part of the ABB CP1 Compact pilot device range, this model combines a green flush actuator with a black plastic bezel and an integrated normally open contact.
The CP1-10G-10 is a non-illuminated pushbutton with momentary operation, meaning its contact changes state while the button is pressed and returns when released. Its integrated 1 NO contact makes it suitable for start commands, control functions, signalling circuits and other applications requiring a normally open switching function.
Designed for the standard 22 mm panel mounting format, the CP1-10G-10 offers a compact all-in-one solution that helps simplify installation. It is rated for a maximum operational voltage of 300 V and provides robust front protection up to IP66, IP67 and IP69K, making it suitable for demanding industrial environments.
Key Advantages
- Compact 22 mm industrial pushbutton for control and automation applications.
- Green flush actuator for clear operator identification.
- Momentary operation for start and control commands.
- Integrated 1 NO contact.
- Non-illuminated design with a durable black plastic bezel.
- Front protection ratings of IP66, IP67 and IP69K.
- Compact all-in-one construction helps reduce panel installation time.
Key Features
- ABB CP1 Compact pushbutton range.
- 22 mm mounting format.
- Green flush actuator.
- Momentary switching action.
- 1 normally open (1 NO) contact.
- Non-illuminated operator.
- Black plastic bezel.
- 300 V maximum operational voltage.
- 2 A AC-15 at 240 V rated operational current.
- 0.3 A DC-13 at 24 V rated operational current.
- Screw-clamp connection with screw terminals.
- Mechanical durability of approximately 0.5 million operations.
Compact Operator Control for Industrial Machinery
Momentary pushbuttons provide a straightforward interface between machine operators and electrical control systems. The normally open contact in the ABB CP1-10G-10 closes when the actuator is pressed and returns to its normal open state after release, making the device particularly suitable for start commands and other temporary control signals.
The ABB CP1 Compact range combines the operator and contact functionality into a space-efficient assembly for standard industrial control-panel installations. With its green flush actuator, integrated 1 NO contact and high degree of front protection, the CP1-10G-10 is well suited to machinery interfaces and industrial operator stations.
Typical Applications
- Industrial machinery start controls.
- Operator control stations.
- Manufacturing and production equipment.
- Automation and PLC control circuits.
- Motor control panels.
- Material handling and conveyor systems.
- Industrial process control equipment.
