Why Choose the ABB CP1-10R-20 Compact Pushbutton?
The ABB CP1-10R-20 is a compact momentary pushbutton designed for industrial control panels, machinery and automation systems. Supplied under ABB order code 1SFA619100R1021, it forms part of the ABB Compact pushbutton range, providing an efficient all-in-one operator and contact solution for industrial control applications.

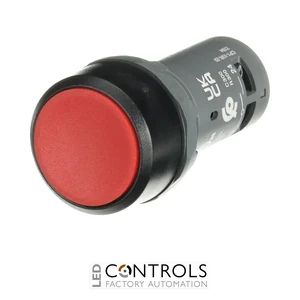

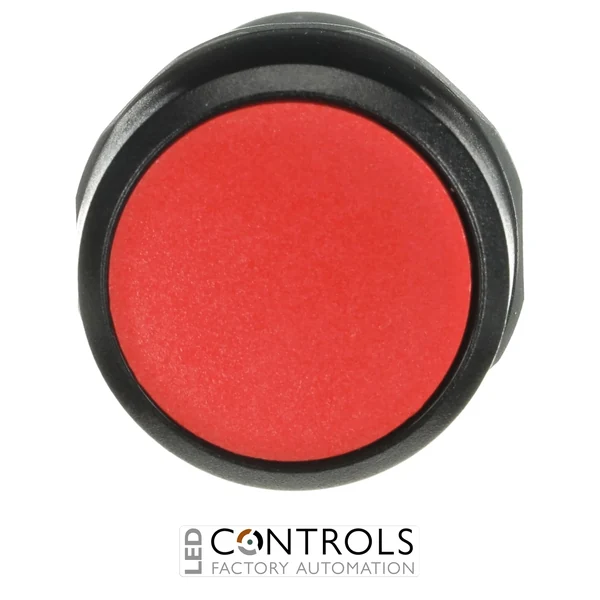

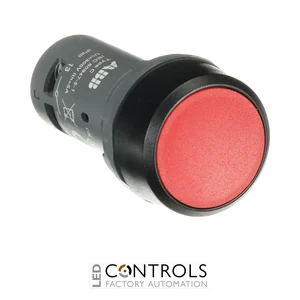

This pushbutton features a flush red actuator, black plastic bezel and 2 normally open (2NO) contacts. Its non-illuminated, spring-return momentary operation makes it suitable for command, start, reset and general-purpose control functions where two normally open circuits need to be switched simultaneously.
Designed for standard 22 mm panel mounting, the CP1-10R-20 combines compact construction with screw-terminal connections and high resistance to dust and water at the operator front. Its robust industrial design and wide operating temperature range make it suitable for machinery, control stations and electrical panels operating in demanding environments.
Key Advantages
- Compact momentary industrial pushbutton for machinery and automation applications.
- 2 normally open (2NO) contacts for simultaneous control-circuit switching.
- Flush red actuator with black plastic bezel.
- Standard 22 mm panel mounting for industrial control panels.
- High front protection with IP66, IP67 and IP69K ratings.
- Convenient screw-terminal connection for straightforward control wiring.
Key Features
- ABB Compact pushbutton range.
- Momentary, spring-return operation.
- Flush actuator design.
- Red pushbutton with black plastic bezel.
- Non-illuminated operator.
- 2NO contact configuration.
- 22 mm panel mounting.
- Screw connection terminals.
- Front protection rated to IP66 / IP67 / IP69K.
- Rated insulation voltage of 300 V.
Reliable Operator Control for Industrial Machinery
Momentary pushbuttons such as the ABB CP1-10R-20 provide a simple and dependable means of issuing commands to industrial control circuits. Pressing the actuator closes its two normally open contacts, while releasing the button allows the spring-return mechanism to restore both contacts to their normal open state.
The ABB Compact range integrates the operator and contact functions into a space-efficient assembly, helping reduce installation time and panel space requirements. With its standard 22 mm mounting format, robust environmental protection and screw connections, the CP1-10R-20 is well suited to machinery, automation equipment and industrial control-panel installations.
Typical Applications
- Industrial machinery control panels.
- Start, command and reset circuits.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Operator stations and control consoles.
- Manufacturing and process equipment.
