Why Choose the ABB CP1-10L-20 Compact Pushbutton?

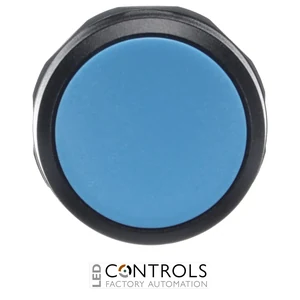

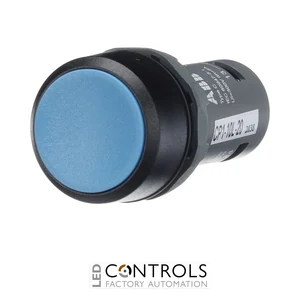

The ABB CP1-10L-20 is a compact 22 mm momentary pushbutton designed for operator control in industrial machinery, control panels and automation systems. Part of the ABB CP1 Compact pushbutton range, this model combines a blue flush actuator with a black plastic bezel and two integrated normally open contacts.
The CP1-10L-20 is a non-illuminated pushbutton with momentary operation, meaning its contacts change state while the actuator is pressed and return to their normal state when released. Its integrated 2 NO contact configuration enables two normally open control circuits to be operated simultaneously from a single pushbutton.
Designed for the standard 22 mm panel mounting format, the CP1-10L-20 provides an efficient all-in-one solution for industrial operator interfaces. The compact construction helps reduce installation time and panel space requirements, while the robust design provides a high degree of resistance to dust and water for demanding industrial environments.
Key Advantages
- Compact 22 mm industrial pushbutton for machinery and automation controls.
- Blue flush actuator with black plastic bezel.
- Momentary operation for temporary control commands.
- Integrated 2 NO contacts for simultaneous switching of two control circuits.
- Non-illuminated all-in-one design.
- High resistance to dust and water for demanding industrial installations.
- Compact construction helps simplify installation and reduce panel space requirements.
Key Features
- ABB CP1 Compact pushbutton range.
- 22 mm mounting format.
- Blue flush actuator.
- Momentary switching action.
- 2 normally open (2 NO) contacts.
- 0 normally closed contacts.
- Non-illuminated operator.
- Black plastic bezel.
- 300 V maximum operational voltage.
- Screw-terminal electrical connections.
- Compact integrated construction for straightforward panel installation.
Compact Dual-Contact Operator Control
Momentary pushbuttons provide a straightforward interface between machine operators and electrical control systems. When the ABB CP1-10L-20 is pressed, its two normally open contacts close and provide control signals to connected circuits; releasing the actuator returns both contacts to their normal open state.
The dual-contact arrangement makes the CP1-10L-20 particularly useful where one operator command needs to switch two independent control circuits. Its compact all-in-one construction and standard 22 mm mounting format support efficient integration into machinery panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Operator control stations.
- Manufacturing and production equipment.
- Automation and PLC control circuits.
- Motor control panels.
- Material handling and conveyor systems.
- Industrial process control equipment.
