Why Choose the ABB CP1-10B-20 Compact Pushbutton?
The ABB CP1-10B-20 is a compact and reliable momentary industrial pushbutton designed for operator control functions in machinery, automation systems and electrical control panels. As part of the ABB Compact pilot device range, it combines the operator and contact elements into an efficient all-in-one assembly for straightforward panel installation.

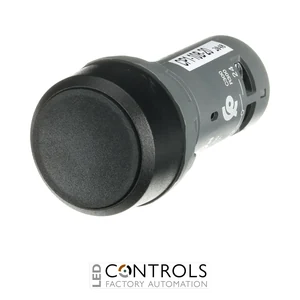

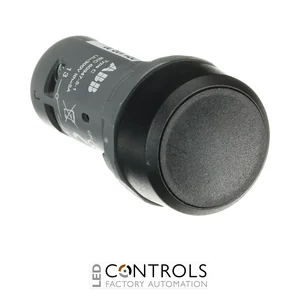

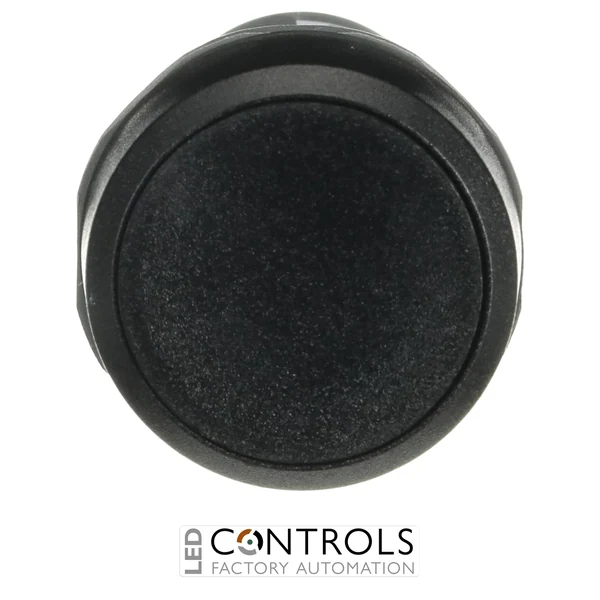

This pushbutton features a black flush actuator, black plastic bezel and 2 normally open (2NO) contacts. Its spring-return momentary action operates the contacts while the actuator is pressed and automatically returns them to their normal state when the button is released.
Designed for a standard 22 mm panel mounting hole, the CP1-10B-20 uses screw terminals and provides IP67/IP69K front protection. Its compact 30 × 30 × 55 mm construction makes it suitable for industrial control stations and machine panels where dependable switching and efficient use of installation space are important.
Key Advantages
- Compact industrial pushbutton designed for machinery and control-panel applications.
- Black flush actuator with matching black plastic bezel.
- Momentary spring-return operation for command and control functions.
- Integrated 2 normally open (2NO) contacts.
- IP67/IP69K front protection for demanding industrial environments.
- Standard 22 mm panel mounting with convenient screw-terminal connections.
Key Features
- ABB Compact / CP1 pushbutton range.
- CP1-10B-20 extended product type.
- Black flush pushbutton actuator.
- Momentary spring-return operation.
- 2NO contact configuration.
- Non-illuminated operator.
- Black plastic front bezel.
- 22 mm mounting-hole diameter.
- Screw terminal connections.
- IP67/IP69K front protection.
- Mechanical durability of 0.5 million operations.
Reliable Operator Control for Industrial Machinery
Industrial pushbuttons provide a direct manual interface between operators and electrical control systems. The ABB CP1-10B-20 uses two normally open contacts that close during actuation, enabling a single operator command to provide two simultaneous switching paths for compatible control, signalling or automation circuits.
The ABB Compact range integrates the operator and contact functions into a space-efficient assembly. With its black flush actuator, spring-return action, screw terminals and robust front protection, the CP1-10B-20 provides a practical solution for machine controls, industrial control stations and automation panels.
Typical Applications
- Industrial machinery control panels.
- Machine command and operator control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process automation control panels.
- OEM machinery and industrial automation systems.
