Why Choose the ABB CP1-10B-01 Compact Pushbutton?
The ABB CP1-10B-01 is a compact and dependable momentary pushbutton designed for industrial control panels, machinery and automation equipment. As part of the ABB Compact pushbutton range, it combines the operator and contact functions in an efficient all-in-one design that helps reduce installation time and simplify panel assembly.

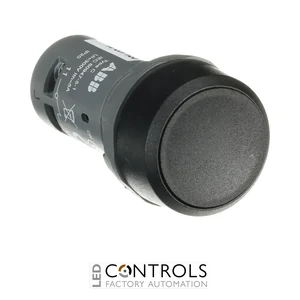

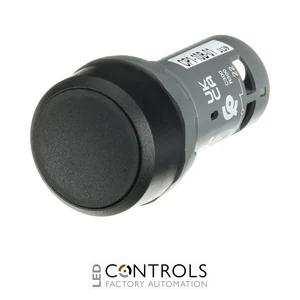

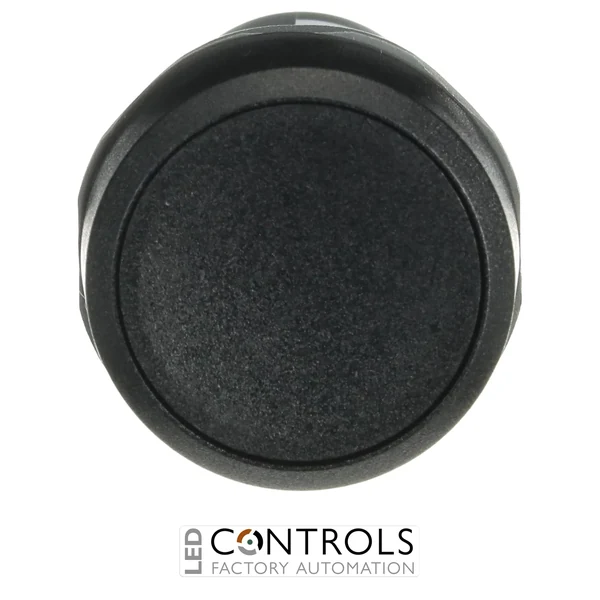

This pushbutton features a black flush actuator with a black plastic bezel and a non-illuminated design. Its momentary spring-return action makes it suitable for control functions where the electrical contact changes state while the actuator is pressed and automatically returns when released.
The CP1-10B-01 incorporates 1 normally closed (1 NC) contact and uses screw terminals for straightforward electrical connection. Designed for a standard 22 mm mounting hole, it offers robust environmental protection and is well suited to demanding machine-control and industrial operator-interface applications.
Key Advantages
- Compact all-in-one pushbutton for industrial control applications.
- Momentary spring-return operation for dependable command functions.
- Black flush actuator provides a clean control-panel interface.
- Integrated 1 NC contact configuration.
- 22 mm mounting format for standard industrial control panels.
- IP67/IP69K front protection for demanding operating environments.
- Screw terminals provide straightforward and secure field wiring.
Key Features
- ABB Compact pushbutton range.
- Momentary, spring-return switching function.
- Flush black actuator.
- Non-illuminated design.
- 1 NC and 0 NO contacts.
- Black plastic front bezel.
- Screw terminal electrical connections.
- 300 V rated insulation voltage.
- 22 mm panel mounting hole.
- IP67/IP69K degree of protection at the operator interface.
- Operating ambient temperature range of -25 to +70 °C.
- 0.5 million operations mechanical durability.
Reliable Control for Industrial Machinery
Momentary pushbuttons provide a simple and dependable human-machine interface for issuing control commands to electrical circuits. When the ABB CP1-10B-01 is pressed, its normally closed contact changes state and automatically returns to its normal condition when the actuator is released.
The ABB Compact range is designed as an efficient all-in-one solution for industrial pilot-device applications. Its compact construction, spring-return operation and high level of dust and water resistance make the CP1-10B-01 suitable for machine panels and control stations where reliable operation and efficient use of panel space are important.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- OEM machinery and automation systems.
