Why Choose the ABB CP1-10Y-11 Compact Pushbutton?
The ABB CP1-10Y-11 is a compact and reliable momentary industrial pushbutton designed for operator control functions in machinery, automation systems and electrical control panels. As part of the ABB Compact CP1 pilot device range, it combines the operator and contact functions into an efficient all-in-one assembly for straightforward panel installation.

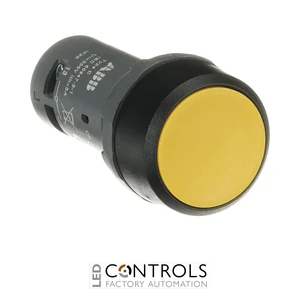

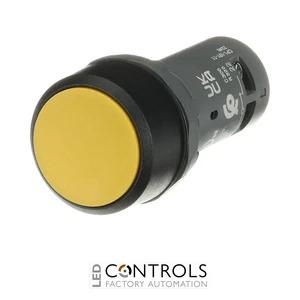

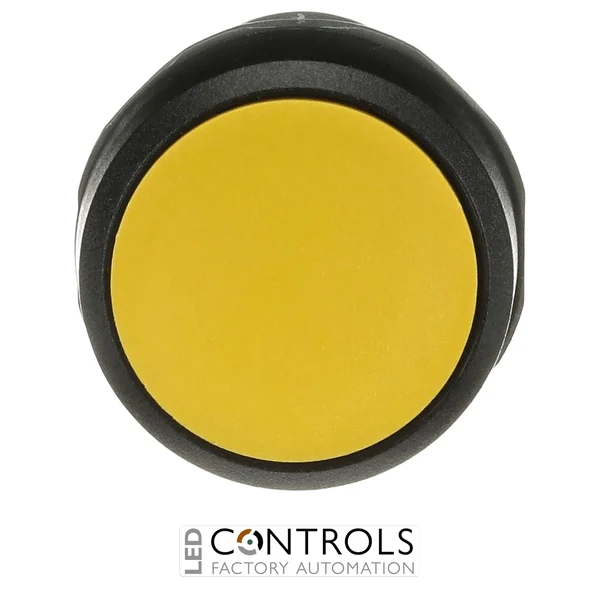

This pushbutton features a yellow flush actuator, black plastic bezel and 1 normally open (1NO) plus 1 normally closed (1NC) contact. It is non-illuminated and uses momentary operation, allowing the two contacts to change state while the pushbutton is actuated and return when it is released.
Designed for standard 22 mm panel mounting, the CP1-10Y-11 uses screw terminals and has compact dimensions of approximately 30 × 30 × 55 mm. Its operator provides high resistance to dust and water ingress, including IP66, IP67 and IP69K protection, making it suitable for demanding industrial control environments.
Key Advantages
- Compact industrial pushbutton designed for machinery and control-panel applications.
- Yellow flush actuator for clear operator identification.
- Momentary operation for command and control functions.
- Integrated 1NO + 1NC contact configuration for versatile control circuits.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Standard 22 mm panel mounting with screw-terminal connections.
Key Features
- ABB Compact / CP1 pushbutton range.
- CP1-10Y-11 extended product type.
- Yellow flush pushbutton actuator.
- Momentary operation.
- 1NO + 1NC contact configuration.
- Non-illuminated operator.
- Black plastic bezel.
- 22 mm panel cut-out.
- Screw terminals for electrical connection.
- 300 V rated insulation voltage.
- Mechanical durability of 0.5 million operations.
Reliable Operator Control for Industrial Machinery
Industrial pushbuttons provide a direct manual interface between operators and electrical control systems. The ABB CP1-10Y-11 combines one normally open and one normally closed contact, allowing a single momentary pushbutton action to provide complementary switching functions for compatible control, signalling, feedback and automation circuits.
The ABB Compact range integrates the operator and electrical contacts into a space-efficient assembly. With its yellow flush actuator, screw terminals, 22 mm panel format and robust environmental protection, the CP1-10Y-11 provides a practical solution for industrial machinery, operator stations and automation panels.
Typical Applications
- Industrial machinery control panels.
- Machine command and operator control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process automation control panels.
- OEM machinery and industrial automation systems.
