Why Choose the ABB CP1-10B-11 Compact Pushbutton?
The ABB CP1-10B-11 is a compact momentary pushbutton designed for industrial control panels, machinery and automation systems. Supplied under ABB order code 1SFA619100R1076, it forms part of the ABB Compact pushbutton range, combining the operator and switching contacts in an efficient all-in-one assembly.

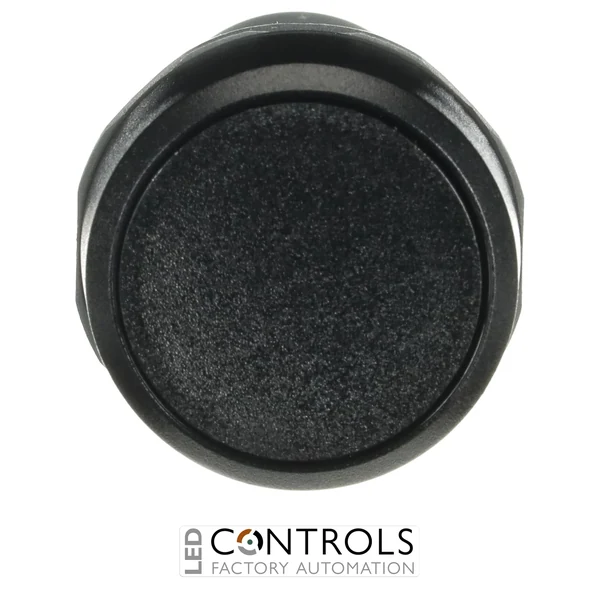

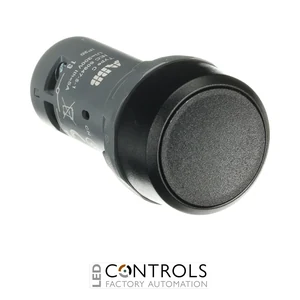

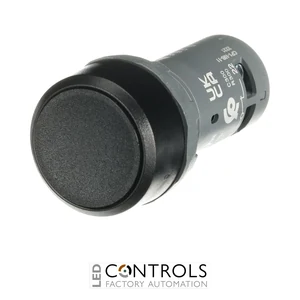

This pushbutton features a flush black actuator, black plastic bezel and 1 normally open (1NO) plus 1 normally closed (1NC) contact. Its non-illuminated, spring-return momentary operation provides both make and break contact functions from a single operator, making it suitable for command, control, signalling and interlocking circuits.
Designed for standard 22 mm panel mounting, the CP1-10B-11 combines compact construction with screw-clamp terminals and high resistance to dust and water at the operator front. With a rated insulation voltage of 300 V, robust environmental protection and a wide operating temperature range, it is well suited to demanding industrial control applications.
Key Advantages
- Compact momentary industrial pushbutton for machinery and automation applications.
- 1NO + 1NC contact configuration provides simultaneous make and break switching functions.
- Flush black actuator with black plastic bezel.
- Standard 22 mm panel mounting for industrial control panels.
- High front protection with IP66, IP67 and IP69K ratings.
- Convenient screw-clamp terminals for straightforward control wiring.
Key Features
- ABB Compact pushbutton range.
- Momentary, spring-return operation.
- Flush actuator design.
- Black pushbutton with black plastic bezel.
- Non-illuminated operator.
- 1NO + 1NC contact configuration.
- 22 mm panel mounting.
- Screw-clamp terminals.
- Front protection rated to IP66 / IP67 / IP69K.
- Rated insulation voltage of 300 V.
Reliable Operator Control for Industrial Machinery
Momentary pushbuttons such as the ABB CP1-10B-11 provide a simple and dependable means of issuing commands within industrial control circuits. Pressing the actuator changes the state of both contacts, closing the normally open contact while opening the normally closed contact; releasing the button allows the spring-return mechanism to restore both contacts to their normal states.
The ABB Compact range integrates the operator and contact functions into a space-efficient assembly, helping reduce installation time and panel space requirements. With its standard 22 mm mounting format, robust environmental protection and screw-clamp connections, the CP1-10B-11 is well suited to machinery, automation equipment and industrial control-panel installations.
Typical Applications
- Industrial machinery control panels.
- Command and control circuits.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Operator stations and control consoles.
- Signalling and electrical interlocking circuits.
