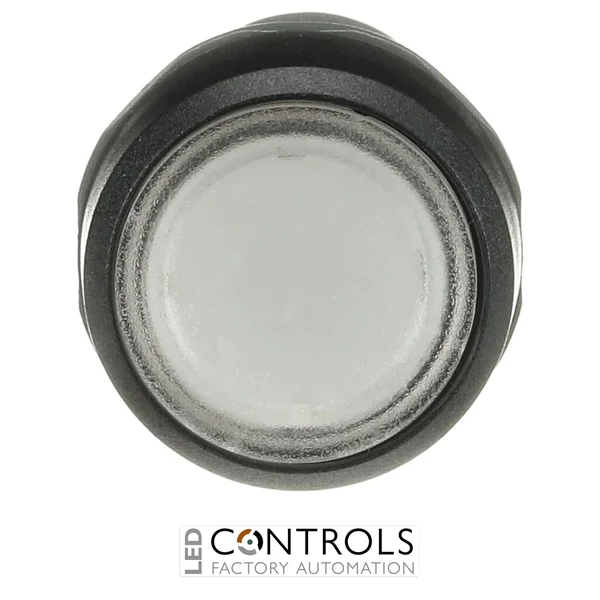

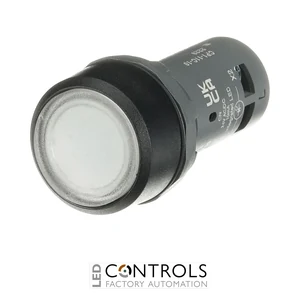

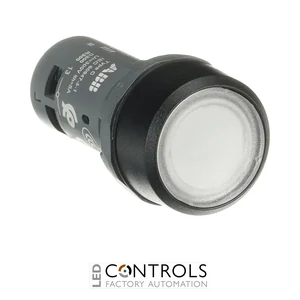

Why Choose the ABB CP1-11C-10 Compact Pushbutton?
The ABB CP1-11C-10 is a compact illuminated momentary pushbutton designed for operator control and visual indication in industrial machinery, automation systems and electrical control panels. As part of the ABB Compact CP1 pilot device range, it combines the operator, LED illumination and contact function in an efficient all-in-one assembly.
This pushbutton features a clear flush actuator, black plastic bezel and 1 normally open (1NO) contact. Integrated 24 V AC/DC LED illumination provides clear visual indication, while the momentary operating mechanism returns the contact to its normal state when the actuator is released.
The CP1-11C-10 is designed for industrial panel mounting and provides robust environmental protection with IP66, IP67 and IP69K front protection. Its compact dimensions of approximately 30 × 30 × 55 mm, screw terminals and durable construction make it suitable for demanding machine-control and operator-interface applications.
Key Advantages
- Compact illuminated industrial pushbutton for machinery and control-panel applications.
- Clear flush actuator with black plastic bezel.
- Integrated 24 V AC/DC LED illumination for visual indication.
- Momentary operation with an integrated 1NO contact.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Compact all-in-one ABB design helps reduce installation time and panel space.
Key Features
- ABB Compact / CP1 pushbutton range.
- CP1-11C-10 extended product type.
- Clear flush pushbutton actuator.
- Momentary operation.
- 1NO contact configuration.
- Illuminated operator with integrated LED.
- 24 V AC/DC illumination voltage.
- Black plastic bezel.
- Screw terminals for electrical connection.
- IP66 / IP67 / IP69K front protection.
- Mechanical durability of 0.5 million operations.
Reliable Illuminated Operator Control for Industrial Machinery
Illuminated pushbuttons combine manual switching with visual indication, allowing operators to interact with machinery while receiving an illuminated status or command indication from the same panel device. The ABB CP1-11C-10 combines a momentary 1NO contact with integrated 24 V AC/DC LED illumination in a compact operator assembly.
The ABB Compact range is designed to simplify industrial panel construction by integrating the required operator functions into a space-efficient device. With its clear flush actuator, LED illumination, screw terminals and high front protection ratings, the CP1-11C-10 is well suited to machinery, control stations and industrial automation systems.
Typical Applications
- Industrial machinery control panels.
- Illuminated operator control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process automation control panels.
- OEM machinery and industrial automation systems.
