Why Choose the ABB CP1-30R-10 Compact Pushbutton?
The ABB CP1-30R-10 is a compact momentary pushbutton designed for industrial machinery, automation systems and electrical control panels. Supplied under ABB order code 1SFA619100R3011, it forms part of the ABB Compact pushbutton range, providing an efficient all-in-one solution that helps reduce installation time and panel space requirements.

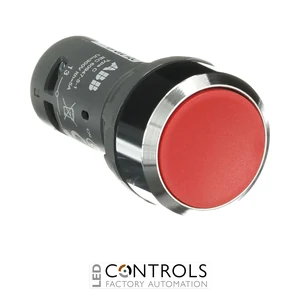

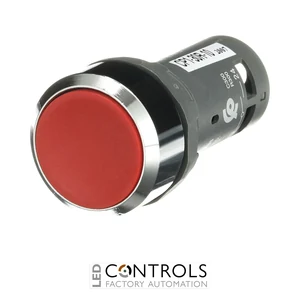

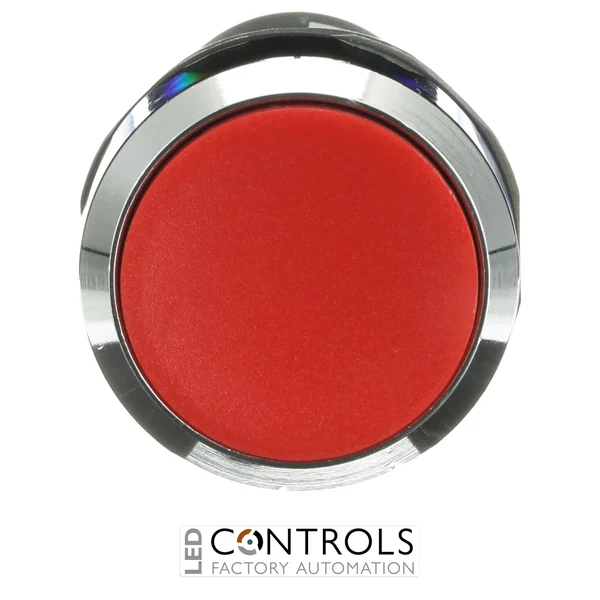

This pushbutton features a flush red actuator, round design and distinctive chrome metal front ring. It is non-illuminated and incorporates 1 normally open (1NO) contact, providing straightforward momentary command switching for machine and process-control applications.
Designed for standard 22 mm panel mounting, the CP1-30R-10 uses screw connections for convenient control wiring. Its IP67 / IP69K protection rating provides a high level of resistance to dust and water, making it suitable for demanding industrial operator stations and control-panel environments.
Key Advantages
- Compact momentary industrial pushbutton for machinery and automation applications.
- 1 normally open (1NO) contact for straightforward command switching.
- Flush red actuator with a chrome metal front ring.
- Standard 22 mm panel mounting for industrial control panels.
- IP67 / IP69K protection provides excellent resistance to dust and water.
- Convenient screw connection for straightforward control wiring.
Key Features
- ABB Compact pushbutton range.
- Momentary, spring-return operation.
- Flush actuator design.
- Red round pushbutton.
- Non-illuminated operator.
- 1NO contact configuration.
- Chrome metal front ring.
- 22 mm panel mounting.
- Screw connection for electrical wiring.
- Protection rating of IP67 / IP69K.
Reliable Operator Control for Industrial Machinery
Momentary pushbuttons such as the ABB CP1-30R-10 provide a simple and dependable means of issuing operator commands within industrial control circuits. Pressing the red actuator closes the normally open contact, while releasing the button allows the spring-return mechanism to restore the contact to its normal open state.
The ABB Compact range combines the operator and contact functions in a space-efficient assembly, helping simplify installation in machinery and electrical panels. With its standard 22 mm mounting format, chrome metal front ring, screw connection and IP67 / IP69K protection, the CP1-30R-10 is well suited to demanding industrial control and automation environments.
Typical Applications
- Industrial machinery control panels.
- Command and control circuits.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Operator stations and control consoles.
- Manufacturing and process equipment.
