Why Choose the ABB CP1-30G-10 Compact Pushbutton?
The ABB CP1-30G-10 is a compact momentary pushbutton designed for industrial machinery, automation systems and electrical control panels. Supplied under ABB order code 1SFA619100R3012, it forms part of the ABB Compact pushbutton range, combining the operator and switching contact in a space-efficient all-in-one assembly.

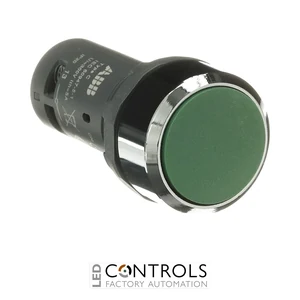

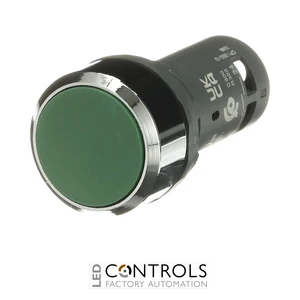

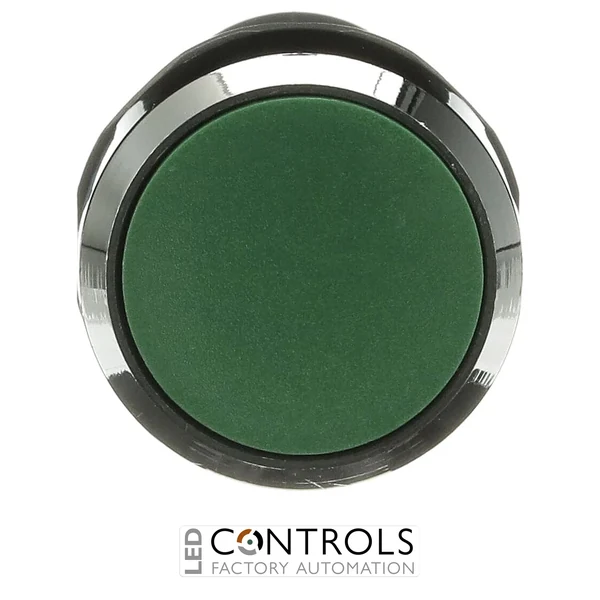

This pushbutton features a flush green actuator, round design and distinctive chrome metal front ring. It is non-illuminated and incorporates 1 normally open (1NO) contact, providing straightforward momentary command switching for machine, process and automation control applications.
Designed for standard 22 mm panel mounting, the CP1-30G-10 uses screw-clamp terminals for convenient control wiring. Its IP66 / IP67 / IP69K front protection, 300 V rated insulation voltage and wide operating temperature range make it suitable for demanding industrial operator stations and control-panel environments.
Key Advantages
- Compact momentary industrial pushbutton for machinery and automation applications.
- 1 normally open (1NO) contact for straightforward command switching.
- Flush green actuator with a chrome metal front ring.
- Standard 22 mm panel mounting for industrial control panels.
- High front protection with IP66, IP67 and IP69K ratings.
- Convenient screw-clamp connection for straightforward control wiring.
Key Features
- ABB Compact pushbutton range.
- Momentary, spring-return operation.
- Flush actuator design.
- Green round pushbutton.
- Non-illuminated operator.
- 1NO contact configuration.
- Chrome metal front ring.
- 22 mm panel mounting.
- Screw-clamp terminals for electrical wiring.
- Mechanical durability of 0.5 million operations.
Reliable Operator Control for Industrial Machinery
Momentary pushbuttons such as the ABB CP1-30G-10 provide a simple and dependable means of issuing operator commands within industrial control circuits. Pressing the green actuator closes the normally open contact, while releasing the button allows the spring-return mechanism to restore the contact to its normal open state.
The ABB Compact range integrates the operator and contact functions into a space-efficient assembly, helping simplify installation and conserve panel space. With its standard 22 mm mounting format, chrome metal front ring, screw-clamp connection and robust environmental protection, the CP1-30G-10 is well suited to machinery, automation equipment and industrial control-panel installations.
Typical Applications
- Industrial machinery control panels.
- Command and control circuits.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Operator stations and control consoles.
- Manufacturing and process equipment.
