Why Choose the ABB CP1-30B-10 Compact Pushbutton?
The ABB CP1-30B-10 is a compact momentary industrial pushbutton designed for operator control functions in machinery, automation systems and electrical control panels. As part of the ABB Compact CP1 pilot device range, it integrates the operator and contact function into an efficient all-in-one assembly for straightforward panel installation.

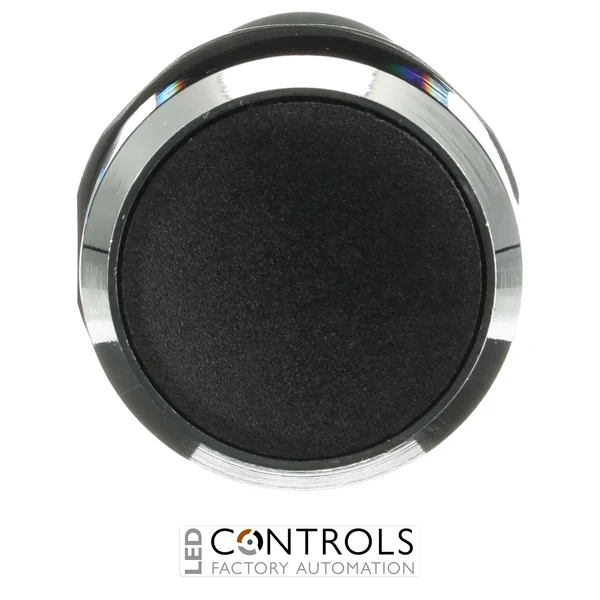

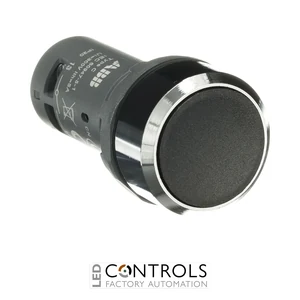

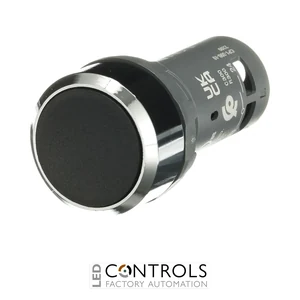

This pushbutton features a black flush actuator, chrome metal front ring and 1 normally open (1NO) contact. It is non-illuminated and uses spring-return momentary operation, so the normally open contact operates while the actuator is pressed and returns to its normal state when released.
Designed for a standard 22 mm mounting hole, the CP1-30B-10 uses screw connections and provides IP67/IP69K protection at the operator. Its compact dimensions of approximately 30 × 30 × 55 mm and robust metal front ring make it suitable for demanding industrial operator stations and machine-control panels.
Key Advantages
- Compact industrial pushbutton designed for machinery and control-panel applications.
- Black flush actuator for clear operator control.
- Chrome metal front ring for a robust operator interface.
- Momentary spring-return operation with an integrated 1NO contact.
- IP67/IP69K operator protection for demanding industrial environments.
- Standard 22 mm panel mounting with screw connection.
Key Features
- ABB Compact / CP1 pushbutton range.
- CP1-30B-10 extended product type.
- Black flush / flat actuator.
- Momentary spring-return operation.
- 1NO contact configuration.
- Non-illuminated operator.
- Chrome metal front ring.
- 22 mm mounting-hole diameter.
- Screw connection for electrical termination.
- IP67/IP69K degree of protection at the operator.
- Mechanical durability of 0.5 million operations.
Reliable Operator Control for Industrial Machinery
Industrial pushbuttons provide a direct manual interface between operators and electrical control systems. The ABB CP1-30B-10 incorporates a spring-return 1NO contact, allowing a temporary control command to be generated while the black actuator is pressed and automatically returning the contact to its normal state when released.
The ABB Compact range integrates the operator and electrical contact functions into a space-efficient assembly. With its black flush actuator, chrome metal front ring, screw connection, standard 22 mm mounting format and IP67/IP69K operator protection, the CP1-30B-10 provides a robust solution for industrial machinery and automation panels.
Typical Applications
- Industrial machinery control panels.
- Machine command and operator control stations.
- Manufacturing and production equipment.
- Conveyor and material handling systems.
- Process automation control panels.
- OEM machinery and industrial automation systems.
