Why Choose the ABB CP1-31Y-10 Compact Pushbutton?

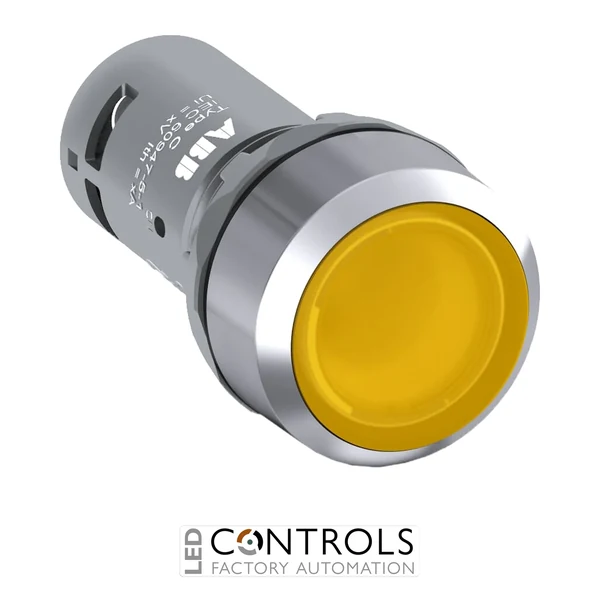

The ABB CP1-31Y-10 is a compact illuminated momentary pushbutton designed for industrial machinery, automation systems and electrical control panels. Supplied under ABB order code 1SFA619100R3113, it forms part of the ABB CP1 Compact pushbutton range, combining the operator, LED illumination and switching contact in a space-efficient all-in-one assembly.
This pushbutton features a flush yellow actuator, chrome metal bezel and 1 normally open (1NO) contact. Integrated yellow LED illumination operates from a 24 V AC/DC supply, providing clear visual indication while the momentary mechanism delivers dependable spring-return command switching.
The CP1-31Y-10 combines compact construction with robust industrial performance and a high level of dust and water resistance. Its chrome metal bezel, screw-terminal connection and broad operating temperature range make it suitable for operator stations, machinery controls and industrial automation panels.
Key Advantages
- Integrated yellow LED illumination provides clear operator indication.
- 24 V AC/DC illumination supply for industrial control and automation systems.
- 1 normally open (1NO) contact for momentary command switching.
- Flush yellow actuator with a durable chrome metal bezel.
- Compact all-in-one design helps reduce installation time and panel space requirements.
- High level of dust and water resistance for demanding industrial environments.
Key Features
- ABB CP1 Compact pushbutton.
- Momentary, spring-return operation.
- Flush actuator design.
- Yellow illuminated pushbutton.
- Integrated 24 V AC/DC LED.
- 1NO contact configuration.
- Chrome metal bezel.
- Screw-terminal connection for control wiring.
- Compact all-in-one construction for efficient panel installation.
- Designed for industrial machinery and automation applications.
Illuminated Operator Control for Industrial Machinery
The ABB CP1-31Y-10 combines momentary switching with integrated yellow LED indication in a compact industrial operator. Pressing the flush actuator closes the normally open contact, while releasing the button allows the spring-return mechanism to restore the contact to its normal open state.
Its integrated LED is designed for a 24 V AC/DC supply, making the CP1-31Y-10 suitable for common industrial control and automation circuits requiring both an operator command and clear visual indication. The chrome metal bezel and compact construction provide a robust, professional solution for machinery and control-panel installations.
Typical Applications
- Industrial machinery control panels.
- Operator stations and control consoles.
- PLC and automation control systems.
- Motor-control panels and switchgear.
- Process and manufacturing equipment.
- Illuminated command and signalling circuits.
