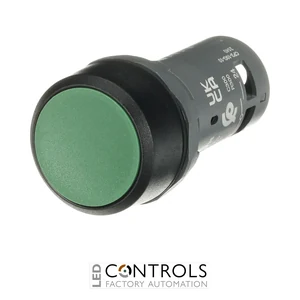

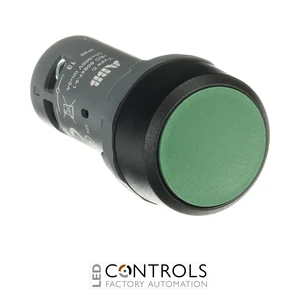

The ABB CP2-10G-10 is a compact and reliable maintained industrial pushbutton designed for operator control applications in electrical panels, machinery and automation systems. As part of the ABB CP Compact Pushbutton series, it provides a space-saving all-in-one solution with simple installation and dependable switching performance.

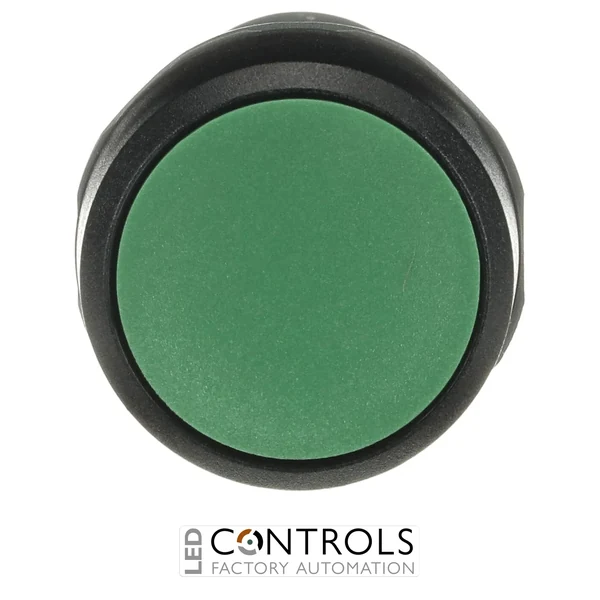

This pushbutton features a flush green actuator, black plastic bezel and non-illuminated design, making it suitable for clear visual identification of control functions in industrial environments. The compact range is engineered to reduce installation time while providing high resistance to dust and water ingress.
With a maintained switching function, 1 normally open (1NO) contact and a rated insulation voltage of 300 V, the CP2-10G-10 is ideal for machine control stations, control cabinets and industrial operator interfaces requiring dependable manual switching.
Key Advantages
Compact ABB CP series pushbutton for industrial control applications.
Maintained operation for stable on/off switching functions.
Green flush actuator for clear operator identification.
1NO contact configuration suitable for control circuits.
Non-illuminated design reduces complexity and installation requirements.
High front protection with IP66, IP67 and IP69K ratings for demanding environments.
Key Features
ABB CP Compact Pushbutton series.
Maintained pushbutton function.
Green flush actuator.
Non-illuminated operation.
1 normally open contact (1NO).
300 V rated insulation voltage.
Screw clamp terminal connection.
Compact 22 mm panel mounting design.
Reliable Operator Control for Industrial Systems
The ABB CP2-10G-10 provides a dependable manual interface for switching control circuits in industrial machinery and electrical installations. Its maintained contact operation allows operators to create stable control states without continuous actuator pressure.
Designed for automation engineers and machine builders, the CP Compact Pushbutton range combines robust construction, compact dimensions and flexible mounting options for modern industrial control applications.
Typical Applications
Industrial control panels and electrical cabinets.
Machine start and stop control stations.
Automation and manufacturing equipment.
Operator interface systems.
Industrial machinery control circuits.
OEM machine building applications.
Technical Specifications
Tick the specs you need, then view products that match.
Contacts
1NO
Device Type
Pushbutton
Product Series
ABB Compact
Mounting Diameter
22 mm
Colour
Green
Operation
Maintained
Illumination
Non-illuminated
Series
CP Compact Pushbuttons
Product type
Compact maintained pushbutton
Order code
1SFA619101R1012
Function
Maintained
Actuator type
Flush
Colour
Green
Illumination
Non-illuminated
Contact configuration
1NO
Rated insulation voltage
300 V
Rated impulse withstand voltage
6 kV
Rated frequency
50 / 60 Hz
Connection type
Screw clamp terminals
Protection rating
Front IP66 / IP67 / IP69K
Mechanical durability
0.5 million operations
Ambient operating temperature
-25 to +70 °C
Storage temperature
-40 to +85 °C
Dimensions (W × H × D)
30 × 30 × 55 mm
Weight
0.018 kg
Frequently Asked Questions
What is the ABB CP2-10G-10 used for?
The ABB CP2-10G-10 is a maintained pushbutton used for manual control of industrial electrical and automation systems.
What contact configuration does this pushbutton have?
The CP2-10G-10 features 1 normally open (1NO) contact and no normally closed contacts.
Is the ABB CP2-10G-10 illuminated?
No, the CP2-10G-10 is a non-illuminated pushbutton with a green flush actuator.
What protection rating does this pushbutton provide?
The pushbutton provides front protection ratings including IP66, IP67 and IP69K for demanding industrial environments.
How is the ABB CP2-10G-10 connected?
The pushbutton uses screw clamp terminals for secure industrial wiring connections.
Trusted by Industrial Automation Professionals
ABB CP Compact Pushbuttons are widely used in industrial control applications to provide reliable operator interfaces, durable switching performance and efficient installation in modern automation systems.
Contacts
1NO
Device Type
Pushbutton
Product Series
ABB Compact
Mounting Diameter
22 mm
Colour
Green
Operation
Maintained
Illumination
Non-illuminated
Series
CP Compact Pushbuttons
Product type
Compact maintained pushbutton
Order code
1SFA619101R1012
Function
Maintained
Actuator type
Flush
Colour
Green
Illumination
Non-illuminated
Contact configuration
1NO
Rated insulation voltage
300 V
Rated impulse withstand voltage
6 kV
Rated frequency
50 / 60 Hz
Connection type
Screw clamp terminals
Protection rating
Front IP66 / IP67 / IP69K
Mechanical durability
0.5 million operations
Ambient operating temperature
-25 to +70 °C
Storage temperature
-40 to +85 °C
Dimensions (W × H × D)
30 × 30 × 55 mm
Weight
0.018 kg
