Why Choose the ABB CP2-10L-10 Compact Pushbutton?
The ABB CP2-10L-10 is a compact maintained pushbutton designed for industrial control panels, machinery and automation systems. As part of the ABB Compact pushbutton range, it combines the operator and contact functions in an efficient all-in-one design that helps simplify installation and reduce panel assembly requirements.

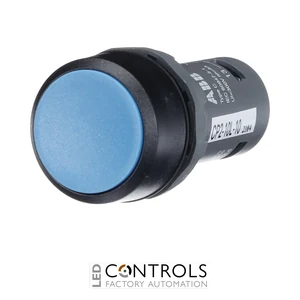

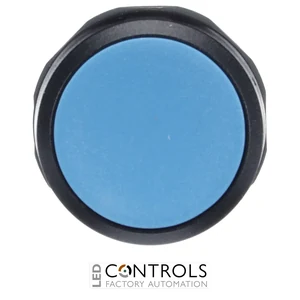

This model features a blue flush actuator, black plastic bezel and non-illuminated construction. Its maintained operating mechanism retains the selected switching state after actuation, making it suitable for industrial control functions that require a persistent contact state rather than momentary operation.
The CP2-10L-10 incorporates 1 normally open (1 NO) contact with no normally closed contacts and uses screw terminals for secure field wiring. Designed for standard 22 mm panel mounting, it provides a compact and robust operator interface for machinery, control stations and industrial automation equipment.
Key Advantages
- Compact maintained pushbutton for industrial control applications.
- Maintained switching action retains the selected contact state.
- Distinctive blue flush actuator for clear operator identification.
- Integrated 1 NO contact configuration.
- Compact black plastic bezel for space-efficient panel installation.
- 22 mm panel mounting format for standard industrial operator interfaces.
- High resistance to dust and water ingress for demanding environments.
- Screw terminals provide straightforward and secure electrical connections.
Key Features
- ABB Compact pushbutton range.
- Maintained switching function.
- Flush blue actuator.
- Non-illuminated design.
- 1 NO and 0 NC contacts.
- Black plastic bezel.
- Screw terminal electrical connections.
- 300 V rated insulation voltage.
- Designed for 22 mm panel mounting.
- IP66, IP67 and IP69K front protection for demanding industrial environments.
- Operating ambient temperature range of -25 to +70 °C.
- Compact 30 × 30 × 55 mm dimensions.
Maintained Control for Industrial Machinery
Maintained pushbuttons provide a persistent operator command by retaining their selected switching state after actuation. The ABB CP2-10L-10 uses a normally open contact that changes state when the pushbutton is operated, providing a practical interface for control circuits that require maintained rather than momentary operation.
The ABB Compact range combines the operator and electrical contact functions in a space-efficient assembly. With its blue flush actuator, screw-terminal connection and high resistance to dust and water ingress, the CP2-10L-10 is well suited to machine panels, operator stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation equipment.
- Machine operator stations.
- Electrical control cabinets and enclosures.
- Manufacturing and production machinery.
- Conveyor and material handling systems.
- OEM automation and machine-building applications.
